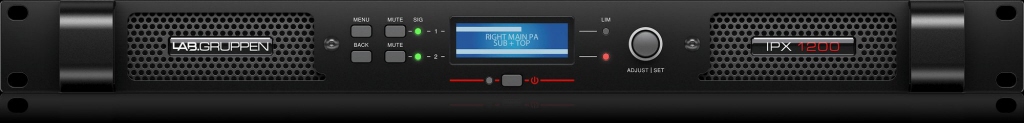

2 x 600W versterker met DSP en IDEEA
- Output Power
- 2 Ω per channel, stereo 500 W
- 4 Ω per channel, stereo 600 W
- 8 Ω per channel, stereo 300 W
- Controls front:
- Power switch DSP section rotary push-encoder Buttons for Menu, Back, Mute (per channel)
- System Output voltage: 70 V peak / 50 Vrms / 36.2 dBu
- Input sensitivity for maximum output voltage: 6 dBu
- Output current: 16 Arms
- Output circuit type: Class-D
- THD+N: < 0.1%, 20 Hz - 20 kHz @ 1 W, < 0.05% @ 1 kHz, 1 dB below clip
- Output noise: -66 dBu, A-weighted
- Signal-to-noise: > 102 dB
- Channel crosstalk: > 80dB @ 1 kHz
- Frequency response: 10 Hz to 20 kHz, +0.5/-1 dB 5 Hz to 40 kHz, -3 dB
- Common mode rejection (CMR): > 50 dB
- Gain (all DSP controls set to 0 dB): 30 dB
