TMH-X25
excl Verzendkosten
Bestel
  • Beschrijving

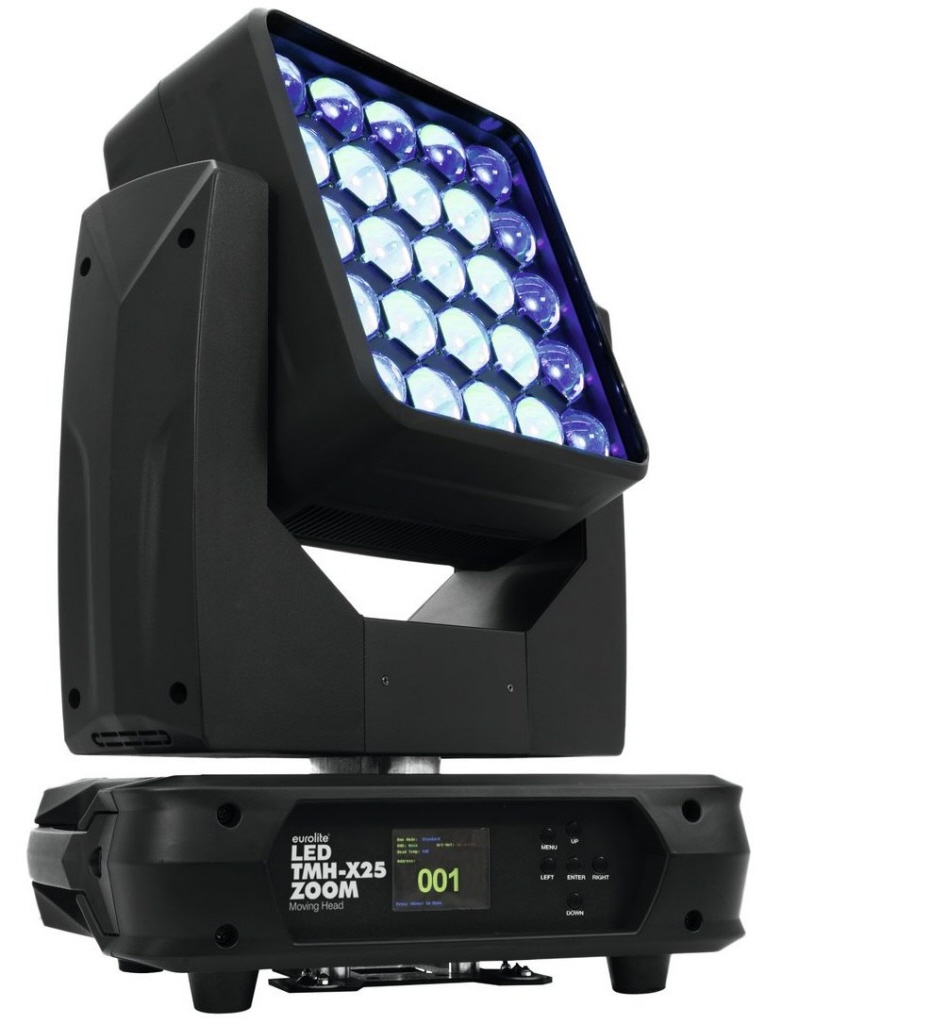

LED TMH-X25 Zoom Moving-Head

Video

  • Quick and easy control via Art-Net
  • Infinity function for unlimited PAN and TILT movement
  • Each LED can be controlled individually
  • Motorized zoom with 7.5-69° beam angle
  • Functions: stepless RGBW color mixture, automatic color change, preset colors and color temperatures, figure and letter patterns, strobe effect with variable speed, random strobe effect, dimmer
  • Different dimmer curves and dimmer speed (step response) adjustable
  • Automatic position correction
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • PAN angle switchable between 540° and 630°
  • DMX-controlled operation or for use via appropriate lighting control software supporting Art-Net
  • Control board with LCD for adjusting the DMX-starting address, PAN/TILT reverse, reset
  • Ethernet connectors
  • P-Con terminals for power linking up to 8 units
  • Switch-mode power supply for operation between 100 and 240 volts
  • LED: 25 x COB (chip-on-board) 12 W 4in1 QCL RGBW (homogenous color mix)
  • Can be operated in 13; 24; 88; 113 CH mode
  • The device is cooled by cooling fan
  • Controlling by DMX; Stand-alone
  • Flicker-free projection
  • Effect: Single Beam
  • Beam angle: 7.5 - 69°
  • Dimension: Width: 41.5 cm Depth: 31 cm Height: 53.5 cm
