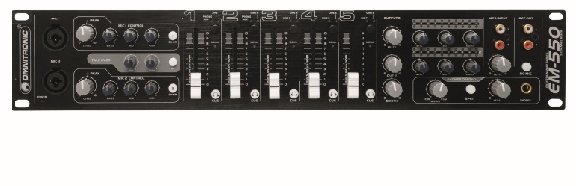

5+2 in 2 horecamixer 10007101
Power supply: 230 V AC, 50 Hz ~, via supplied power unit
Power consumption: 35 W
Inputs: Microphone 1,2: combined XLR/6.3 mm jack (1/4") (bal.), Minimum input voltage: 1 mV RMS
Line 1-8, Aux 1,2: stereo RCA, Minimum input voltage: 150 mV RMS
Phono 1,2: stereo RCA, Minimum input voltage: 3 mV
RMS Outputs: Master 1-3: stereo RCA, stereo XLR, Output voltage: 0.75 V/1.5 V RMS (switchable)
Record: stereo RCA, Output voltage: 0.75 V RMS
Headphones: 6.3 mm stereo jack (min. 8 ohms)
Tone control (microphone 1,2 zone 1-3): 4 x High: -12 dB to +12 dB/ 10 kHz 4 x Mid: -12 dB to +12 dB/ 1 kHz 4 x Low: -12 dB to +12 dB/ 100 Hz
Talkover attenuation: -15dB
S/N ratio: >65 dB
Frequency range: 20-20000 Hz
Distortion: 0.03 %
Dimensions (WxHxD): 483 x 115 x 90 mm (19", 2 U)
