Omnitronic
!

XDA-1002 2*510w 4ohm 1HE 10451635

!
  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption: 210 W (1/8 power)
  • Power output sine:
    stereo 4 ohms 2 x 510 W
    stereo 8 ohms 2 x 300 W
    8 ohms bridged 1 x 1000 W
  • Frequency range: 30-20000 Hz
  • Damping factor: >200
  • Distortion factor: 0.05 %
  • Slew rate: 20 V/usec
  • S/N ratio: 100 dB
  • Input impedance: 20 kohms (balanced), 10 kohms (unbalanced)
  • Input connectors: 2 x XLR
  • Output connectors: 2 x Speaker, 2 x XLR feed-through output
  • Circuitry: class D
  • Control elements: power switch, level control per channel, mode switch (stereo/bridged), ground lift switch
  •  LED indicators: Protect, limit, signal, power
  • Protection circuits: Short-circuit, overheat, DC voltage, power on/off transients, softstart
  • Dimensions (DxWxH): 240 x 483 x 44 mm (19", 1 U)

XDA-2402 2*1200w 4ohm 1HE 10451636

!
Als boven maar nu met;
  • Power consumption: 465(1/8 power)
  • Power output sine:
    stereo 4 ohms 2 x 1200 W
    stereo 8 ohms 2 x 880 W

EDP3600 2*1700w 4ohm 1HE 10451615

!
  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption: 1050 W (1/8 power)
  • Power output (RMS):
    stereo 4 ohms 2 x 1700 W
    stereo 8 ohms 2 x 1000 W 8 ohms
    bridged 1 x 3600 W
  • Frequency range: 20-20000 Hz, ±0.5 dB
  • Damping factor: >250
  • Distortion factor: <0.1 %
  • Slew rate: 20 V/µsec
  • S/N ratio: >95 dB
  • Input impedance: 20 kohms (balanced), 10 kohms (unbalanced)
  • Input connectors: 2 x XLR
  • Output connectors: 2 x Speaker, 2 x XLR feed-through output
  • Circuitry: class D + PFC
  • Control elements: power switch, level control per channel, mode switch (stereo/bridged)
  • LED indicators: protect, clip, signal, -6 dB, -12 dB, -18 dB, -25 dB (per channel)
  • Protection circuits: softstart, short-circuit, overheat, clipping, overload and VHF signals
  • Dimensions (DxWxH): 250 x 483 x 44 mm (19", 1 U)

SMA-1000 2*480w 4ohm 2HE 10451084

!
  • Power consumption: 598 W (1/8 power)
  • Power output sine:
    stereo 4 ohms 2 x 482 W
    stereo 8 ohms 2 x 340 W
    8 ohms bridged 1 x 1000 W
  • Frequency range: 20-20000 Hz, +/- 0.5 dB
  • Damping factor: >150
  • Distortion factor: 0.05 %
  • Slew rate: >20 V/usec
  • S/N ratio: >90 dB
  • Channel seperation: >70 dB/ 1 kHz
  • Input sensitivity: 26 dB/32 dB (2.48 V/1.244 V), switchable
  • Voltage gain: 38 dB
  • Input impedance: 20 kohms (balanced), 10 kohms (unbalanced)
  • Input connectors: stereo XLR
  • Output connectors: stereo Speaker, feed-through output (stereo RCA, stereo 6.3 mm jack)
  • Circuitry: class AB
  • Control elements: power switch, level control per channel, mode switch (stereo/parallel/bridged),
    sensitivity selector, peak filter selector
  • LED indicators: parallel, bridge (globally), protect, clip, signal (per channel)
  • Protection circuits: short-circuit, overheat, DC voltage, VHF signals, softstart
  • Dimensions (DxWxH): 390 x 483 x 92 mm (19", 2 U)

SMA-1500 2*740w 4ohm 2HE 10451086

!
Als boven maar nu met;
  • Power consumption: 522 W (1/8 power)
  • Power output sine:
    stereo 4 ohms 2 x 743 W
    stereo 8 ohms 2 x 480 W
    8 ohms bridged 1 x 1500 W
  • Dimensions (DxWxH): 390 x 483 x 92 mm (19", 2 U)

SMA-2000 2*1000w 4ohm 2HE 10451088

!
Als boven maar nu met;
  • Power consumption: 575 W (1/8 power)
  • Power output sine:
    stereo 4 ohms 2 x 1000 W
    stereo 8 ohms 2 x 637 W
    8 ohms bridged 1 x 2000 W
  • Dimensions (DxWxH): 390 x 483 x 92 mm (19", 2 U)

XPA-1800 2*900w 4ohm 2HE 10451036

!
  • Power supply: 230 V AC, 50 Hz ~
  • Power consumption: 765 W (1/8 power)
  • Power output (RMS):
    Stereo 4 ohms 2 x 900 W
    Stereo 8 ohms 2 x 650 W
    8 ohms bridged 1 x 1800 W
  • Frequency response: 20-20000 Hz, ±1 dB
  • Signal-to-noise ratio: >100 dB
  • Total harmonic distortion: 0.1 %
  • Damping factor: >200
  • Voltage gain: 34.3 dB
  • Slew rate: 30 V/usec.
  • Crosstalk: 72 dB
  • Input sensitivity: 0.775 V / 1.4 V, switchable
  • Input impedance: 20 kohms (balanced), 10 kohms (unbalanced)
  • Input connectors: 2 x XLR, 2 x RCA
  • Output connectors: 2 x speaker, 2 x pairs of screw terminals
  • Protection: power switch, level control per channel, mode switch (stereo/bridged), limiter selector, groundlift selector
  • Cooling: 2 fans
  • Controls: Power switch, input attenuators, mode switch (stereo/parallel/bridged), ground lift
  • Indicators: bridged, protect, and 5-fold output meter with clip LED (per channel)
  • Dimensions: 354 x 483 x 103 mm (19", 2 U)

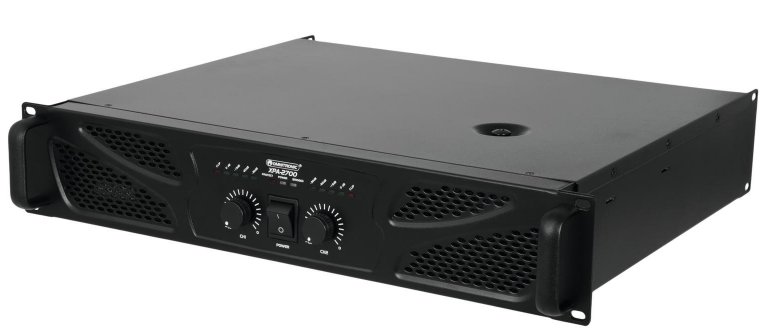

XPA-2700 2*1350w 4ohm 2HE 10451037

!
Als boven maar nu met;
  • Power consumption:1300 W (1/8 power)
  • Power output (RMS):
    Stereo 4 ohm 2 x 1350 W
    Stereo 8 ohm 2 x 1080 W
    8 ohm bridged 1 x 2700 W
