Stands
!

Lightstands

!

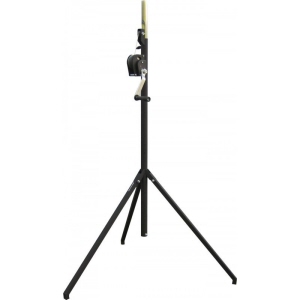

JB LS-270 PRO Lightstand H 2,70m. With winch 65Kg max 00738

!
    Zeer stevige maar laaggeprijsd windup statief, perfect voor DJ's
    Winch met automatische rem en inklapbare hendel
    TÜV, GS-keuringen
    Max. Height: 2,70m
    Min. Height: 1,85m
    Diameter bottom: 1,10m
    Top section: 35mm
    Max. load: 65kg

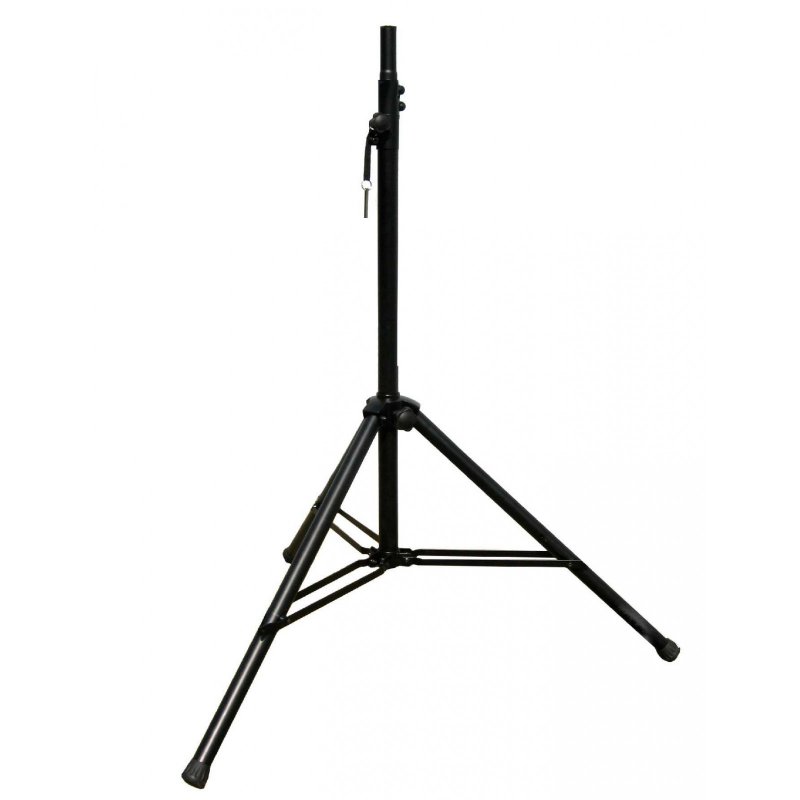

JB LS-64 Lightstand H 3,10m. 80kg max 00732

!
    Professioneel multifunctioneel statief
    Perfect voor gebruik als luidspreker- en lichtstatief
    Zeer stabiele constructie met metalen basis
    Kan ook als lichtstatief worden gebruikt met de optionele
    TB-66 T-Bar
    Mast diameter = 35mm
    Minimum height = 1,35m
    Maximum height = 3,10m
    Maximum load = 80kg

JB LS-400 Lightstand H 4,00m. 80kg max 00748

!
    Licht doch stevig professioneel lichtstatief
    Zeer stabiel
    Geen kabels meer die kunnen breken
    Geen veiligheidspinnen meer te bedienen tijdens het hijsen
    Vergrendelt automatisch elke centimeter
    Geen knoppen meer op de palen die moeten vastgedraaid worden voor een betere stabiliteit
    Zeer eenvoudig in gebruik •Snelle installatie
    Max belasting: 120kg
    Max hoogte: 4m
    Max Load: 120kg
    Max Height: 4m
    Min Height: 1.38m
    Base diameter: 1.50m

ASD ALT470 Lightstand H 4,7m. 150kg max 02602

!
  • Ultra stable professional stand for heavy duty all-round applications
  • Treated steel, black epoxy/zinc finish
  • 4 articulated legs with adjustable jacks
  • Winch with automatic brake
  • Max. Height: 4,70m
  • Min. Height: 1,90m
  • Diameter bottom: 2,13m
  • Top section: 35mm
  • Max. load: 150kg

ASD ALT400 Lightstand H 4,1m. 80kg max 02601

!
  • Very stable stand made of steel with chrome finish, perfect for all-round applications
  • Winch with automatic brake
  • Max. Height: 4,10m
  • Min. Height: 1,75m
  • Diameter bottom: 1,15m-1,25m
  • Top section: 35mm
  • Max. load: 80kg

JB TB-66 T-bar L 1,50m. For 6 Projectors 00733

!
    T-Bar voor LS64
    Geschikt voor montage tot max. 12 projectoren
    Alle bouten en moeren zijn inbegrepen
    Lengte = 150cm
    Te monteren op statieven met een standaard 35mm topsectie

JB TB-64 T-bar L 1,20m. For 4 Projectors 00743

!
    Stalen T-bar (30x30mm)
    Geschikt voor montage tot max. 8 projectoren
    Alle bouten en moeren zijn inbegrepen
    Lengte = 120cm
    Te monteren op statieven met een standaard 35mm topsectie

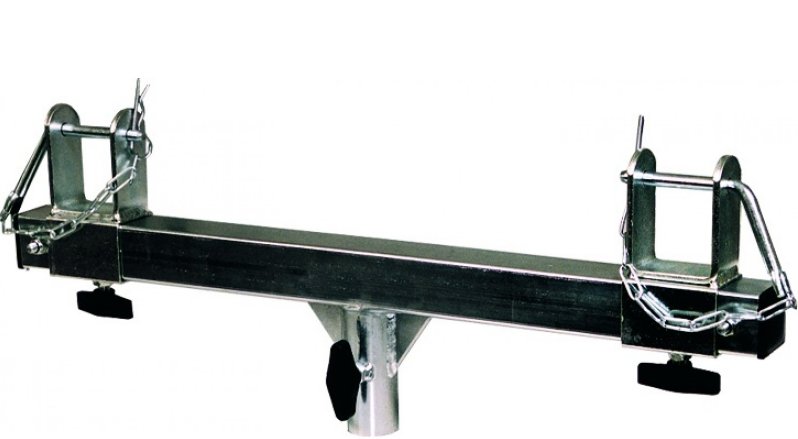

ASD T-350 alutruss chassis 02615

!
    Adaptable T-adapter used to fix ALU truss
    Sections 150 to 350mm
    Suitable for our Stands with top section ø35mm

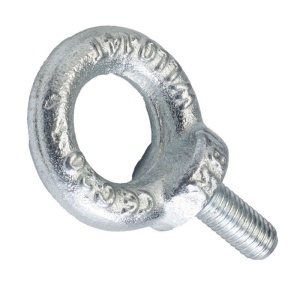

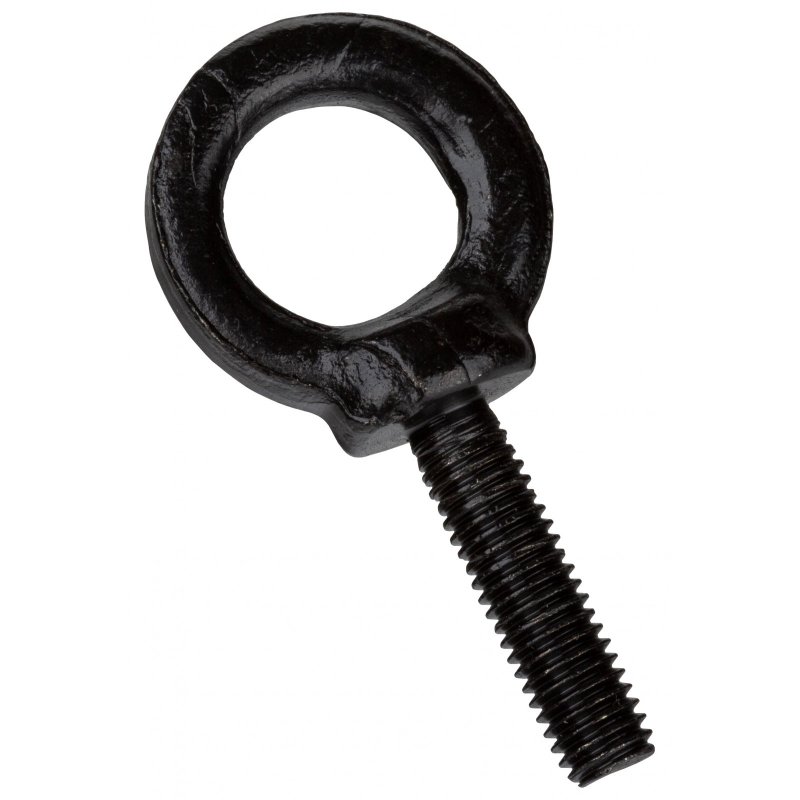

M8 Eyebolt (4 pcs) 00657

!

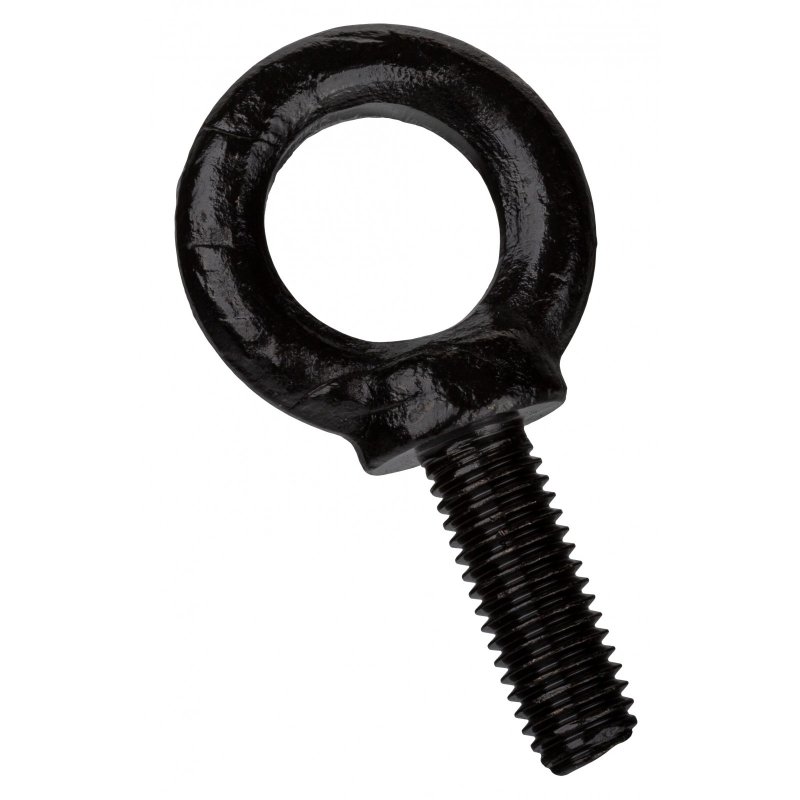

    JB SYSTEMS M10 Eyebolt (4 pcs) 50Kg

M10 Eyebolt (4 pcs) 00658

!
    JB SYSTEMS M10 Eyebolt (4 pcs) 50Kg

Stands & Clamps meebestel prijs

!

Eurolite TH-100N Theatre hook 70Kg per 2 st 58000732

!
    Theatre hook
    Hook for installing projectors, lighting effects etc. via a truss system
    For truss systems with a tube diameter of 50 mm
    For the installation at horizontal and vertical truss
    Max. load WLL (4-fold): 200 kg
    Max. load BGV C1 (8-fold): 100 kg
    Max. load BGV C1 (10-fold): 80 kg
    Max. load BGV C1 (12-fold): 70 kg
    Dimensions (LxWxH): 130 x 105 x 35 mm

Eurolite TH-52S G-hook 50Kg per 2 st 58000643

!
    Theatre hook
    Hook for installing projectors, lighting effects etc. via a truss system
    For truss systems with a tube diameter of 50 mm
    Only for the installation at horizontal truss!
    Max. load WLL (4-fold): 50 kg
    Max. load BGV C1 (8-fold): 25 kg
    Max. load BGV C1 (10-fold): 20 kg
    Max. load BGV C1 (12-fold): 15 kg
    Dimensions (LxWxH): 137 x 80 x 30 mm

Eurolite TH-40S G-hook 30Kg per 2 st 58000571

!
    Theatre hook
    Hook for installing projectors, lighting effects etc. via a truss system
    For truss systems with a tube diameter of 40 mm
    Max. load WLL (4-fold): 30 kg
    Max. load BGV C1 (8-fold): 15 kg
    Max. load BGV C1 (10-fold): 12 kg
    Max. load BGV C1 (12-fold): 10 kg
    Dimensions (LxWxH): 125 x 90 x 30 mm

Eurolite TH-90S G-hook 100Kg per 2 st 58000721

!
    Hook for installing projectors, lighting effects etc. via a truss system
    For truss systems with a tube diameter of 50 mm
    Only for the installation at horizontal truss!
    Max. load WLL (4-fold): 100 kg
    Max. load BGV C1 (8-fold): 50 kg
    Max. load BGV C1 (10-fold): 40 kg
    Max. load BGV C1 (12-fold): 35 kg

Eurolite TPC-30S, coupler 250Kg per 2 st 59006862

!
    For 50 mm tube
    Width 30 mm
    Max. load WLL (4-fold): 500 kg
    Max. load BGV C1 (8-fold): 250 kg
    Max. load BGV C1 (10-fold): 200 kg
    Max. load BGV C1 (12-fold): 150 kg
    Dimensions (LxWxH): 145 x 115 x 35 mm

EUROLITE Steel Rope (SC) 400x4mm black 175Kg 5-fold per 2 st 58010427

!
    Suitable for installing light loads
    With two loops
    4 mm quick link (form A) included
    Max. load WLL (5-fold): 160 kg
    Temperature range: -40° C to +100° C
    Rope length: 0.4 m
    Rope diameter: 4 mm

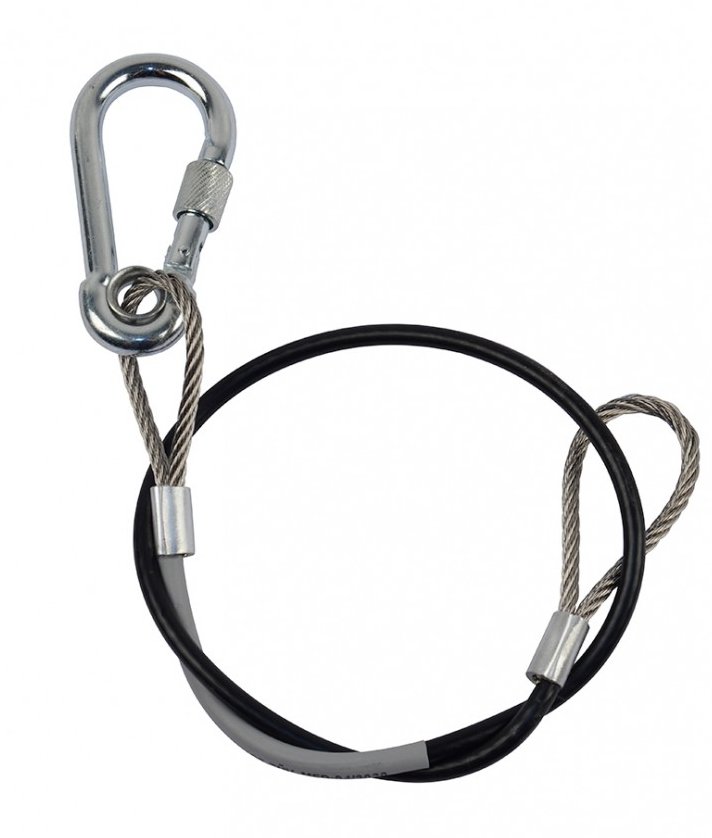

    EUROLITE Steel Rope (SC) 900x4mm black 175Kg 5-fold per 2 st 58010455

    !
      Suitable for installing light loads
      With two loops
      4 mm quick link (form A) included
      Max. load WLL (5-fold): 100 kg
      Max. load BGV C1 (10-fold): 50 kg
      Max. load BGV C1 (12-fold): 45 kg
      Temperature range: -40° C to +100° C

    EUROLITE Quick Link Type A-90 180Kg 5-fold per 2 st 50301644

    !

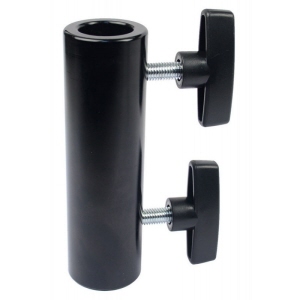

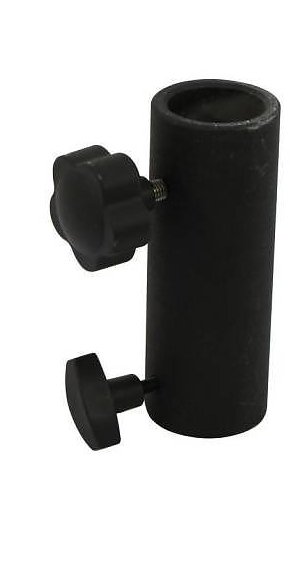

    STV-3528 spigot 28-35mm per 2 st 59007074

    !
      For stands with telescopic tube 35 mm
      Connection element for cross beam with 28 mm spigot
      With M6 and M8 fixation screw
      Heavy version for highest stability

    Eurolite STT-400 4mtr statief max 85Kg 59007040

    !
      Made of steel
      1-gear winch for easy lifting of the loads
      Automatic braking system
      Safety-pins for mechanic locking
      One adjustable leg for levelling
      Ideal for mobile, professional lighting-systems or PA-systems
      Easy handling
      Type: Winch-driven stand
      Construction: DIN 15560-27, DIN EN ISO 12100-2
      Certified by: CE
      Sections: 3
      Max. load: 85 kg
      Min. load: 25 kg
      Max. height: 4.10 m
      Min. height: 1.80 m
      Adapter: D = 30 mm
      Base area: D = 1.46 m
      Transport dimensions: 1.80 x 0.21 x 0.19 m

    Eyebolt M8/30mm 150Kg 8-fold per 4 st 30001172

    !
      High-tensile ring bolt for holding, carrying, suspending and securing
      Can be used as attachment gear or connection element, e.g. for screwing into the flying points of a loudspeaker cabinet
      Warning: the given working load limit (WLL) of this product is valid for holding and carrying loads with lifting gear.
      The WLL does not describe the maximum load for overhead rigging!

      Material: AlSi316
      Thread diameter: M8
      Thread length: 30 mm
      Max. load WLL (4-fold): 300 kg
      Max. load BGV C1 (8-fold): 150 kg
      Max. load BGV C1 (12-fold): 100 kg

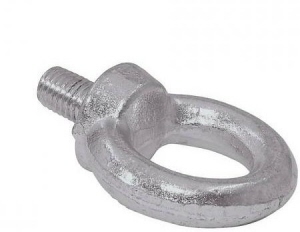

    Eyebolt M8/13mm 70Kg 8-fold per 4 st 30001165

    !
      Material: C15E
      Thread diameter: M8
      Thread length: 13 mm
      Max. load WLL (4-fold): 140 kg
      Max. load BGV C1 (8-fold): 70 kg
      Inner diameter: 20 mm
      Outer diameter: 36 mm
      Total length: 492 mm

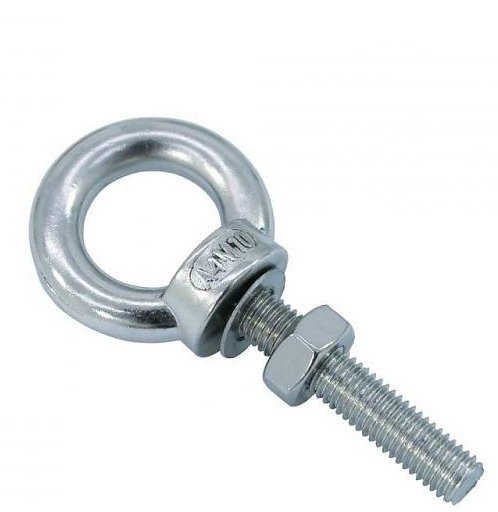

    Eyebolt M10/50mm 500Kg 8-fold per 4 st 30001169

    !
      Material: AlSi316
      Thread diameter: M10
      Thread length: 50 mm
      Max. load WLL (4-fold): 1000 kg
      Max. load BGV C1 (8-fold): 500 kg
      Inner diameter: 25 mm
      Outer diameter: 44 mm
      Total length: 95 mm

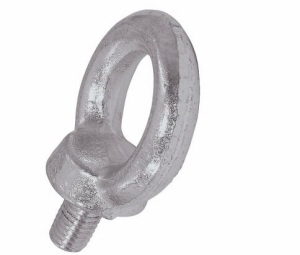

    Eyebolt M10/17mm 115Kg 8-fold per 4 st 30001166

    !
      Material: C15E
      Thread diameter: M10
      Thread length: 17 mm
      Max. load WLL (4-fold): 230 kg
      Max. load BGV C1 (8-fold): 115 kg
      Inner diameter: 25 mm
      Outer diameter: 45 mm
      Total length: 62 mm
