JAM Systems Flatpacks
Kies voor UK Import - extra 25euro verzendkosten per 25Kg!!!
!

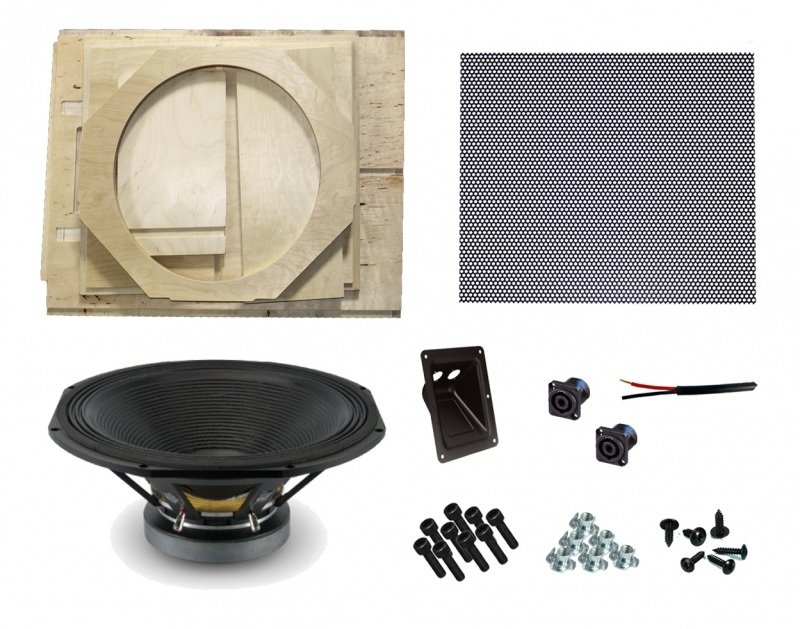

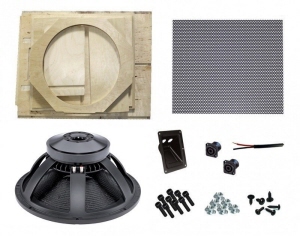

Cabinet Flatpack Kit

!

JS118 Bass

!
    The JAM Systems S118 subwoofer cabinet has been designed to offer astonishing high performance for your low frequencies.
    A compact footprint enclosure to deliver maximum output from its size, the S118 runs down to 40Hz to deliver that all-important earth-shaking rumble to your mix, with a performance usually only achieved with larger subwoofers.
    With a reflex design for maximum versatility, the S118 is the ideal solution for beefing up your bottom end, and to take the strain off your mid-highs to let them do what they do best.
    Four different driver options are available, for a peak calculated SPL output of 137dB (131dB continuous, based on the 1200W Fane Colossus Prime 18XS).
    Internal cabinet volume (allowing for ports and driver volume) approximately 155 litres. Tuning frequency, approximately 39hz.

MT1581 Speaker

!
    This is a complete flatpack kit for the JAM Systems MT1581 3-way speaker cabinet
    Pack includes:
    1 x Front baffle panel, with CNC cutouts for Beyma's TD164 horn flare, the Sonitus MR8XT 8" midrange horn, and a cutout to fit a range of high performance 15" drivers.
    2 x side panels, with mitred angles. Also features CNC cutouts and recesses for 3402 handles.
    1 x Rear panel with mitred angled edges. Pre-cut with recess for 87160 angled connector dish.
    1 x Top Panel with curved front edge for continuous curve when stacking multiple panels
    1 x Bottom Panel with curved front edge.
    1 x Divider (optional) divided reduces volume to around 55 litres and shifts cabinet tuning up to about 52 Hz for a tighter punchier bass.
    Without the divider, volume is around 77 litres and tuning is around 40 Hz which makes the cabinet a little more general purpose.
    1 x Middle brace 1 x Angled Reflex Port 3 x curved grill supports.
    1 has no cutouts, this fits the top of the speaker, the second has a recess underneath allowing it to be fitted over the top of the 15" speaker, and the last one has two recesses on the front, and acts as an extension to the reflex port with the recesses reducing the port extension.
    The front panel is cut from high quality 18mm birch ply, and the other panels are 15mm high quality birch ply.
    Assembly instructions can be found here:

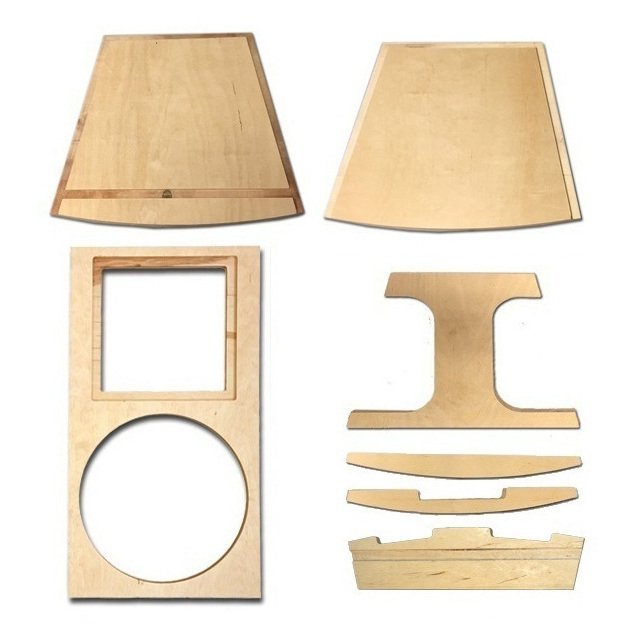

MT1514A Speaker

!
    This is a complete flatpack kit to build the cabinet for the JAM Systems MT1514A speaker, designed for a 15" LF driver and an Oberton H1464 1.4" entry throat horn flare.

    Pack includes: 2 x side panels, with mitred angles. Also features CNC cutouts and recesses for 3402 steel bar handles.
    1 x Rear panel with mitred angled edges. Precut with recess for 87160 angled connector dish.
    1 x Top Panel with curved front edge for continuous curve when stacking multiple panels
    1 x Bottom Panel with curved front edge.
    1 x Middle brace
    1 x Angled Reflex Port
    2 x curved grill supports. 1 has no cutouts, this fits the top of the speaker, the second has two recesses on the front, and acts as an extension to the reflex port with the recesses reducing the port extension.

    The front panel is cut from high quality 18mm birch ply, and the other panels are 15mm high quality birch ply

MT1514B Speaker

!
    This is a complete flatpack kit to build the cabinet for the JAM Systems MT1514A speaker, designed for a 15" LF driver and a P-Audio PH305 1.4" entry throat horn flare.
    Pack includes: 2 x side panels, with mitred angles. Also features CNC cutouts and recesses for 3402 steel bar handles.
    1 x Rear panel with mitred angled edges. Precut with recess for 87160 angled connector dish.
    1 x Top Panel with curved front edge for continuous curve when stacking multiple panels
    1 x Bottom Panel with curved front edge.
    1 x Middle brace
    1 x Angled Reflex Port
    2 x curved grill supports. 1 has no cutouts, this fits the top of the speaker, the second has two recesses on the front, and acts as an extension to the reflex port with the recesses reducing the port turbulence.
    The front panel is cut from high quality 18mm birch ply, and the other panels are 15mm high quality birch ply.

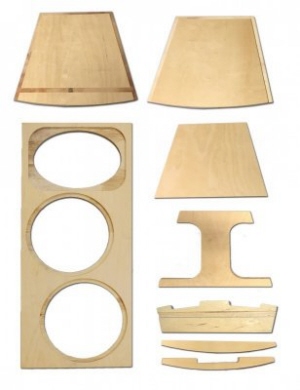

MT2214 Speaker

!
    This is a complete flatpack kit to build the cabinet for the JAM Systems MT2241 speaker, designed to accommodate a pair of 12" LF drivers and a Faital Pro LTH142 1.4" throat horn flare.

    Pack includes: 2 x side panels, with mitred angles. Also features CNC cutouts and recesses for 3402 handles.
    1 x Rear panel with mitred angled edges. Pre-cut with recess for 87160 angled connector dish.
    1 x Top Panel with curved front edge for continuous curve when stacking multiple panels
    1 x Bottom Panel with curved front edge.
    1 x Divider (optional) divided reduces volume to around 63 litres and shifts cabinet tuning up to about 52 Hz for a tighter punchier bass. Without the divider, volume is around 85 litres and tuning is around 40 Hz which makes the cabinet a little more general purpose.
    1 x Middle brace
    1 x Angled Reflex Port
    3 x curved grill supports. 1 has no cutouts, this fits the top of the speaker, the second has a recess underneath for fitting between the two 12" speakers, and the last one has two recesses on the front, and acts as an extension to the reflex port with the recesses reducing the port extension.
    The front panel is cut from high quality 18mm birch ply, and the other panels are 15mm high quality birch ply.

    Dimensions:
    Height: 1000mm
    Width: 440mm (at widest point along front)
    Depth 400m (from front of curve)

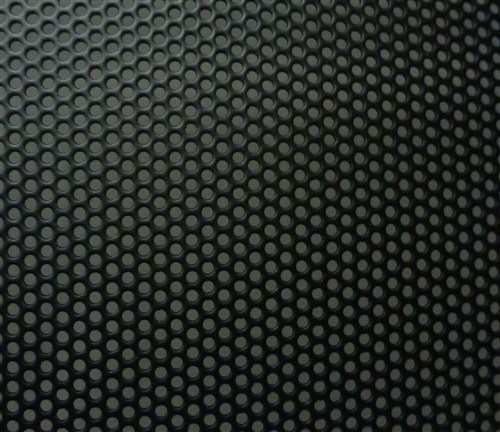

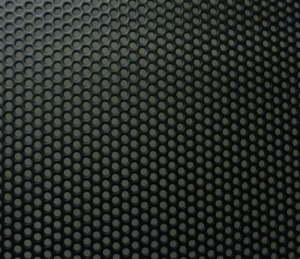

MT1581 - MT2214 Hardware Grill powdered

!
    Pre-cut perforated steel grille for JAM Systems MT1581 - MT2214 cabinet.
    969mm x 408mm, black powder coated mild steel

MT1581 Driver Pack 4 800W

!
    Bi-amping at 400Hz!!

    Complete set of all horns and drivers required to load the JAM Systems MT1581 enclosure, with weight-saving neodymium magnets throughout.
    Consists of:
  • Oberton 15NMB35 600W 15" driver
  • Sonitus MR8XTN high efficiency 150W 8" driver with bespoke horn
  • Beyma CP385Nd 1" 70W Bolt-on compression driver
  • Beyma TD164 60 x 40 degree dispersion horn flare
  • Custom passive crossover designed specifically for this enclosure

MT1581 Driver Pack 5 800W

!
    Bi-amping at 400Hz!!

    Complete set of all horns and drivers required to load the JAM Systems MT1581 enclosure, with custom passive crossover.
    Consists of:
  • Oberton 15NMB35 600W 15" driver
  • Sonitus MR8XTN 150W 8" driver with bespoke horn
  • B&C 60W 1" Bolt-on compression driver
  • Beyma TD164 60 x 40 degree dispersion horn flare
  • Passive crossover designed specifically for this enclosure

MT1581 Driver Pack 1 900W

!
    Bi-amping at 400Hz!!
    Complete set of all horns and drivers required to load the JAM Systems MT1581 enclosure, with custom passive crossover. Consists of:
  • Oberton 15MB35 700W 15" driver
  • Sonitus MR8XT high efficiency 8" driver with bespoke horn
  • Beyma TD164 60 x 40 degree dispersion cast aluminium horn flare
  • Faital Pro HF103 60W 1" exit throat compression driver
  • Custom passive crossover designed specifically for this enclosure

MT1581 Driver Pack 2 1000W

!
    Bi-amping at 400Hz!!
    Complete set of all horns and drivers required to load the JAM Systems MT1581 enclosure, with custom passive crossover.
    Consists of:
  • Beyma 15P80Fe/N 800W 15" driver
  • Sonitus MR8XT 150W 8" driver with bespoke horn
  • Faital Pro HF103 1" 60W Bolt-on compression driver
  • Beyma TD164 60 x 40 degree dispersion horn flare
  • Passive crossover designed specifically for this enclosure

    MT1514A Driver Pack 1 700W

    !
      Complete set of all horns and drivers required to load the JAM Systems MT1514A enclosure, with custom passive crossover. Consists of:
    • Oberton 15MB35 700W 15" driver
    • Oberton H1464 60 x 40 degree dispersion horn flare
    • BMS 4554 80W 1.4" exit throat compression driver
    • Custom passive crossover designed specifically for this enclosure 1600Hz

    MT1514A Driver Pack 2 800W

    !
      Complete set of all horns and drivers required to load the JAM Systems MT1514A enclosure, with custom passive crossover. Consists of:
    • Beyma 15P80ND 800W 15" driver
    • Oberton H1464 60 x 40 degree dispersion horn flare
    • Beyma CP755Ti 90W 1.4" exit throat compression driver
    • Custom passive crossover designed specifically for this enclosure 1600Hz

    MT1514B Driver Pack 1 700W

    !
      Complete set of all horns and drivers required to load the JAM Systems MT1514B enclosure, with custom passive crossover. Consists of:
    • Faital Pro 15FX560 700W 15" driver
    • P-Audio PH305 60 x 40 degree dispersion horn flare
    • Faital Pro HF146 80W 1.4" exit throat compression driver
    • Custom passive crossover designed specifically for this enclosure 1600Hz

    MT1514B Driver Pack 2 800W

    !
      Complete set of all horns and drivers required to load the JAM Systems MT1514B enclosure, with custom passive crossover. Consists of:
    • Beyma 15P80ND 800W 15" driver
    • P-Audio PH305 60 x 40 degree dispersion horn flare
    • Beyma CP755Ti 90W 1.4" exit throat compression driver
    • Custom passive crossover designed specifically for this enclosure 1600Hz

    MT2214 Driver Pack 1 1200W

    !
      Bi-amping at 1600Hz
      Complete set of horn and drivers required to load the JAM Systems MT2214 enclosure. Consists of:
    • P-Audio SN-12MB 600w 12" driver
    • Faital Pro LTH 142 60 x 50 degree dispersion horn flare
    • Beyma CP755TI 90w 1.4" exit throat compression driver
      100€ extra for custom passive crossover designed specifically for this enclosure 1600Hz

    MT2214 Driver Pack 2 900W

    !
      Bi-amping at 1600Hz!!
      Complete set of horn and drivers required to load the JAM Systems MT1514A enclosure. Consists of:
    • Oberton 12B450 450w 12" driver
    • Faital Pro LTH 142 60 x 50 degree dispersion horn flare
    • BMS 4554 80w 1.4" exit throat compression driver
      100€ extra for custom passive crossover designed specifically for this enclosure 1600Hz

    JS118 Driver Pack 1 1000W

    !
      driver required to load the JAM Systems JS118 enclosure. Consists of:
    • Colossus 18xb 1000w 18" driver

    JS118 Driver Pack 2 1200W

    !
      driver required to load the JAM Systems JS118 enclosure. Consists of:
    • Colossus PRIME 18XS 1200w 18" driver

    JAM Systems Cabinet Hardware Pack 1 - 1581, 1514, 2214

    !
      Value cabinet hardware pack, comprising a pair of medium bar handles, recessed connector plate and a pair of NL4MP Speakon sockets.
      Ideal for JAM Systems 1581, 1514 and 2214 cabinets

    JAM Systems Cabinet Hardware Pack 2 - 1581, 1514, 2214

    !
      Value cabinet hardware pack, comprising a pair of TUFF3402 medium bar handles, one ADH87160 recessed connector plate and a pair of genuine Neutrik NL4MP Speakon sockets.
      Ideal for JAM Systems 1581, 1514 and 2214 cabinets

    JAM Systems Cabinet Hardware Pack 3 - 1581, 1514, 2214

    !
      Value cabinet hardware pack, comprising a pair of TUFF3402PE medium bar handles, one TUFRCONDGSP recessed connector plate and a pair of genuine Neutrik NL8MPR Speakon sockets.
      Ideal for JAM Systems 1581, 1514 and 2214 cabinets

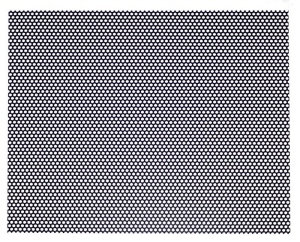

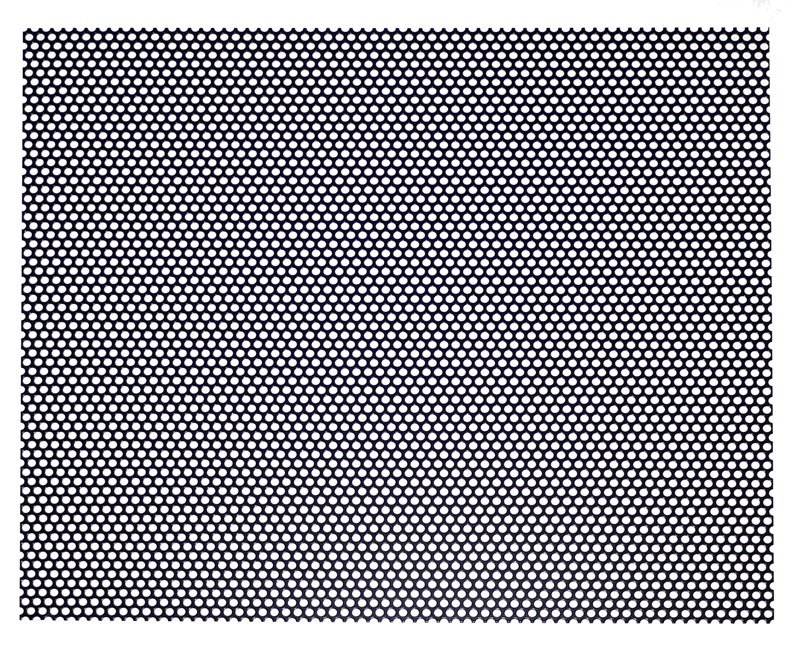

    JAM Systems Grille for JS118

    !
      Pre-cut grille sheet for use on the JAM Systems S118 subwoofer cabinet.
      Dimensions 550 x 480mm (nominal - some variance due to manufacturing tolerances) x 1.5mm thick, with offset 6mm round perforations.
      Black powder coated for corrosion resistance and durability.
