Matrix
Kies voor UK Import - extra 25euro verzendkosten per 25Kg!!!
!

XT serie

!

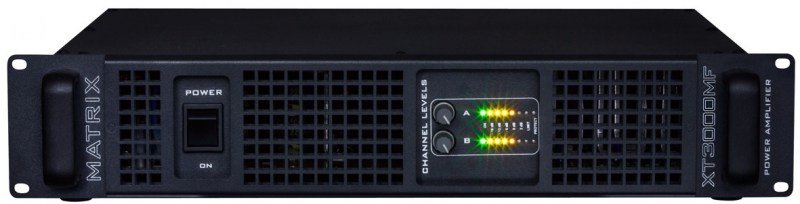

XT3000MF 2x 1500W 4Ohm

!
    Number of channels:2
    Height (RU):2U
    Watts (rms) per channel, 8 Ohm:1000
    Watts (rms) per channel, 4 Ohm:1500
    Input Senstivity: 1.1V
    Voltage Gain: 37.0dB
    Average Supply Current, Full load:16A
    Mains Connector:32A POWERCON
    Frequency Response (±3dB ref 1kHz):8Hz – 24kHz
    Signal to Noise Ratio (ref full power, 1kHz):99dB
    THD (1kHz, full power):0.07%
    THD (20Hz - 20kHz, full power):<0.1%
    Slew Rate:65V/μs
    Damping Factor (ref. 8R, 100Hz): >400
    Cooling (Temperature Controlled Dual Speed Fan):2x 80mm Fan + 60mm internal fan
    Cooling Direction:Front to Back
    Dimensions, mm:482 x 88 x 400
    Weight:8.6kg

XT5000MF 2x 2500W 4Ohm

!
    Number of channels:2
    Height (RU):2U
    Watts (rms) per channel, 8 Ohm:1800
    Watts (rms) per channel, 4 Ohm:2500
    Input Sensitivity: 1.4V
    Voltage Gain: 37.0 dB
    Average Supply Current, Full load:27A
    Mains Connector:32A POWERCON
    Frequency Response (±3dB ref 1kHz):8Hz – 24kHz
    Signal to Noise Ratio (ref full power, 1kHz):101dB
    THD (1kHz, full power):0.07%
    THD (20Hz - 20kHz, full power):<0.1%
    Slew Rate:69V/μs
    Damping Factor (ref. 8R, 100Hz): >550
    Cooling (Temperature Controlled Dual Speed Fan):2x 80mm Fan + 60mm internal fan
    Cooling Direction:Front to Back
    Dimensions, mm:482 x 88 x 400
    Weight:8.4kg

XT7000MF 2x 3500W 4Ohm

!
    Number of channels:2
    Height (RU):2U
    Watts (rms) per channel, 8 Ohm:2500
    Watts (rms) per channel, 4 Ohm:3500
    Input Sensitivity: 1.73V
    Voltage gain: 37 dB
    Average Supply Current, Full load:32A
    Mains Connector:32A POWERCON
    Frequency Response (±3dB ref 1kHz):8Hz – 24kHz
    Signal to Noise Ratio (ref full power, 1kHz):102dB
    THD (1kHz, full power):0.07%
    THD (20Hz - 20kHz, full power):<0.1%
    Slew Rate:69V/μs
    Damping Factor (ref. 8R, 100Hz): >650
    Cooling (Temperature Controlled Dual Speed Fan):2x 80mm Fan + 60mm internal fan
    Cooling Direction:Front to Back
    Dimensions, mm:482 x 88 x 400
    Weight:9.0kg

XT10000MF 2x 5000W 4Ohm

!
    Number of channels:2
    Height (RU):2U
    Watts (rms) per channel, 8 Ohm:3500
    Watts (rms) per channel, 4 Ohm:5000
    Input Sensitivity: 1.73V
    Voltage gain: 37 dB
    Average Supply Current, Full load:32A
    Mains Connector:32A POWERCON
    Frequency Response (±3dB ref 1kHz):8Hz – 24kHz
    Signal to Noise Ratio (ref full power, 1kHz):102dB
    THD (1kHz, full power):0.07%
    THD (20Hz - 20kHz, full power):<0.1%
    Slew Rate:69V/μs
    Damping Factor (ref. 8R, 100Hz): >650
    Cooling (Temperature Controlled Dual Speed Fan):2x 80mm Fan + 60mm internal fan
    Cooling Direction:Front to Back
    Dimensions, mm:482 x 88 x 400
    Weight:9.0kg

XT serie 4-channel

!

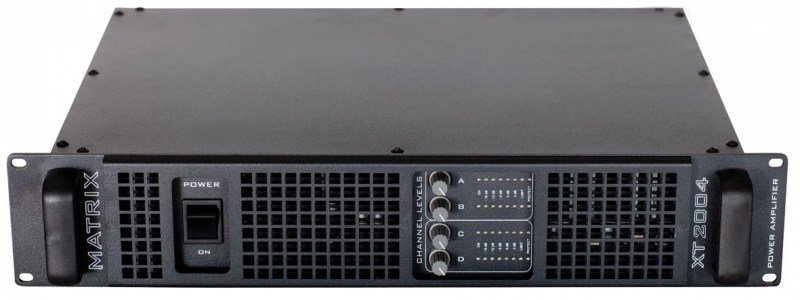

XT2004 4x 500W 4Ohm

!
    Number of channels:4
    Height (RU):2U
    Watts (rms) per channel, 8 Ohm:300
    Watts (rms) per channel, 4 Ohm:500
    Average Supply Current, Full load:5A
    Mains Connector:20A POWERCON
    Frequency Response (±3dB ref 1kHz):8Hz – 24kHz
    Signal to Noise Ratio (ref full power, 1kHz):99dB
    THD (1kHz, full power):0.07%
    THD (20Hz - 20kHz, full power):<0.1%
    Slew Rate:65V/μs
    Damping Factor (ref. 8R, 100Hz): >400
    Cooling (Temperature Controlled Dual Speed Fan):2x 80mm Fan
    Cooling Direction:Front to Back
    Dimensions, mm:482 x 88 x 370
    Weight:8.1kg

XT4004 4x 1000W 4Ohm

!
    Number of channels: 4
    Height (RU): 2U
    Watts (rms) per channel, 8 Ohm: 650
    Watts (rms) per channel, 4 Ohm: 1000
    Average Supply Current, Full load: 10A
    Mains Connector: 20A POWERCON
    Frequency Response (±3dB ref 1kHz): 8Hz – 24kHz
    Signal to Noise Ratio (ref full power, 1kHz): 102dB
    THD (1kHz, full power): 0.07%
    THD (20Hz - 20kHz, full power): <0.1%
    Slew Rate: 69V/μs
    Damping Factor (ref. 8R, 100Hz): >550
    Cooling (Temperature Controlled Dual Speed Fan): 2x 80mm Fan
    Cooling Direction: Front to Back
    Dimensions:482 x 88 x 370 mm
    Weight: 8.4kg

XT6004 4x 1200W 4Ohm

!
    Number of channels:4
    Height (RU):2U
    Watts (rms) per channel, 8 Ohm:900
    Watts (rms) per channel, 4 Ohm:1200
    Watts (rms) per channel pair, 8 Ohm Bridged:2400
    Average Supply Current, Full load:16A
    Mains Connector:20A POWERCON
    Frequency Response (±3dB ref 1kHz):8Hz – 24kHz
    Signal to Noise Ratio (ref full power, 1kHz):102dB
    THD (1kHz, full power):0.07%
    THD (20Hz - 20kHz, full power):<0.1%
    Slew Rate:69V/μs
    Damping Factor (ref. 8R, 100Hz): >650
    Cooling (Temperature Controlled Dual Speed Fan):2x 80mm Fan
    Cooling Direction:Front to Back
    Dimensions, mm:482 x 88 x 376
    Weight:8.6kg

XT serie + x-over 4-channel

!

XT2004EQ 4x 500W 4Ohm

!
    Number of channels:4
    Height (RU):2U
    Watts (rms) per channel, 8 Ohm:300
    Watts (rms) per channel, 4 Ohm:500
    Watts (rms) per channel pair, 8 Ohm Bridged:1000
    High / low pass filter on each channel swept from: 70Hz up
    Average Supply Current, Full load:5A
    Mains Connector:20A POWERCON
    Frequency Response (±3dB ref 1kHz):8Hz – 24kHz
    Signal to Noise Ratio (ref full power, 1kHz):99dB
    THD (1kHz, full power):0.07%
    THD (20Hz - 20kHz, full power):<0.1%
    Slew Rate:65V/μs
    Damping Factor (ref. 8R, 100Hz):>400
    Cooling (Temperature Controlled Dual Speed Fan):2x 80mm Fan
    Cooling Direction:Front to Back
    Dimensions, mm:482 x 88 x 376
    Weight:8.2kg

XT4004EQ 2x 1000W 4Ohm

!
    Number of channels:4
    Height (RU):2U
    Watts (rms) per channel, 8 Ohm:650
    Watts (rms) per channel, 4 Ohm:1000
    Watts (rms) per channel pair, 8 Ohm Bridged:2000
    High / low pass filter on each channel swept from: 70Hz up
    Average Supply Current, Full load:10A
    Mains Connector:20A POWERCON
    Frequency Response (±3dB ref 1kHz):8Hz – 24kHz
    Signal to Noise Ratio (ref full power, 1kHz):102dB
    THD (1kHz, full power):0.07%
    THD (20Hz - 20kHz, full power):<0.1%
    Slew Rate:69V/μs
    Damping Factor (ref. 8R, 100Hz): >550
    Cooling (Temperature Controlled Dual Speed Fan):2x 80mm Fan
    Cooling Direction:Front to Back
    Dimensions, mm:482 x 88 x 376
    Weight:8.5kg

XT6004EQ 2x 1200W 4Ohm

!
    Number of channels:4
    Height (RU):2U
    Watts (rms) per channel, 8 Ohm:900
    Watts (rms) per channel, 4 Ohm:1200
    Watts (rms) per channel pair, 8 Ohm Bridged:2400
    High / low pass filter on each channel swept from: 70Hz up
    Average Supply Current, Full load:16A
    Mains Connector:20A POWERCON
    Frequency Response (±3dB ref 1kHz):8Hz – 24kHz
    Signal to Noise Ratio (ref full power, 1kHz):102dB
    THD (1kHz, full power):0.07%
    THD (20Hz - 20kHz, full power):<0.1%
    Slew Rate:69V/μs
    Damping Factor (ref. 8R, 100Hz): >650
    Cooling (Temperature Controlled Dual Speed Fan):2x 80mm Fan
    Cooling Direction:Front to Back
    Dimensions, mm:482 x 88 x 376
    Weight:8.6kg
