TurboSound
!

IQ serie active

!

iQ-10

!
    Frequency response: 55 Hz – 18 kHz ±3 dB, 50 Hz – 20 kHz -10 dB
    Nominal dispersion: 90° H x 60° V @ -6 dB points
    Maximum SPL: 129 dB peak
    Crossover type: Active
    Transducers: 1 x 10" (256 mm) LF driver, 1 x 1" (25.4 mm) HF compression driver
    Limiter: Independent HF, LF, peak and rms
    Maximum output power: 2,500 W Type Class-D
    Protection: Short circuit, open circuit, thermal
    Input: A / B 2 x combo jack/XLR
    Sensitivity: Line +4 dBu, mic -22 dBu, switchable
    Input impedance: 20 kΩ unbalanced, 40 kΩ balanced
    Maximum input level: +21 dBu
    Output: A / B 2 x XLR Linked to input
    Mix output: XLR, balanced
    Output impedance: 100 Ω unbalanced, 200 Ω balanced
    Ultranet: input/link 2 x RJ45
    Mains Supply: Neutrik powerCON input 20A and link 15A
    DSP: Rotary push-encoder, Buttons for PROCESS, SETUP, EXIT, ENTER
    Mixer section: 2 x gain controls (channels A and B) 2 x Line/Mic switch
    User DSP Functions: Factory EQ presets Positioning, Sound mode, Sound modeling, FBQ
    Display LCD: 128 x 32, blue backlit
    Delay: 0 - 300 ms
    Equalisation: High and low shelving EQ 2 x parametric EQ
    Limiter: Zero attack input limiter
    Presets: 20 total presets, 19 user-definablenable
    Crossover: High Pass L-R 24 dB/oct
    Protection: Lock-out function for all settings
    Ultranet: Digital Network Signal 16 channels
    Latency: < 0.9 ms Cabling Cables Shielded CAT5 Cable length max. 246 ft / 75 m recommended
    Power Supply: Power consumption 150 W @ 1⁄8 max power Voltage (fuses) 220-240 V~, 50/60 Hz (T 10 A H 250V)
    Dimensions: HWD 526 x 324 x 316 mm(20.7 x 12.7 x 12.4")
    Construction: Injection-moulded polypropylene enclosure
    Finish: Black painted
    Grille: Powder coated perforated steel
    Flying hardware: M10 x 3 points

iQ-12

!
    Frequency Response: 52 Hz – 18 kHz ±3 dB 45 Hz – 20 kHz -10 dB
    Nominal Dispersion: 80° H x 60° V @ -6 dB points
    Maximum SPL: 130 dB peak
    Crossover type: Active
    Transducers: 1 x 12" (308.5 mm) LF driver 1 x 1" (25.4 mm) HF compression driver
    Dimensions: (H x W x D) 457 x 279 x 279 mm (18.0 x 11.0 x 11.0")
    Verdere gegevens als boven.

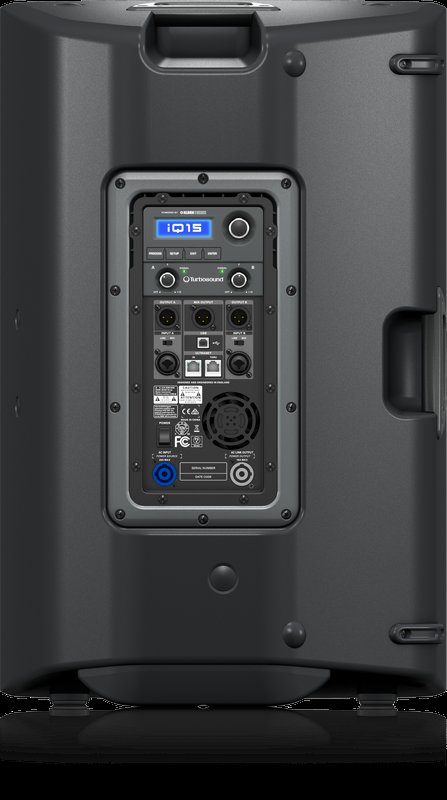

iQ-15

!
    Frequency response: 50 Hz – 18 kHz ±3 Db 42 Hz – 20 kHz -10 dB
    Nominal dispersion: 75° H x 55° V @ -6 dB points
    Maximum SPL: 132 dB peak
    Crossover type: Active
    Transducers: 1 x 15" (387 mm) LF driver 1 x 1" (25.4 mm) HF compression driver
    Dimensions HWD: 711 x 450 x 381 mm (27.9 x 17.7 x 15.0")
    Verdere gegevens als boven

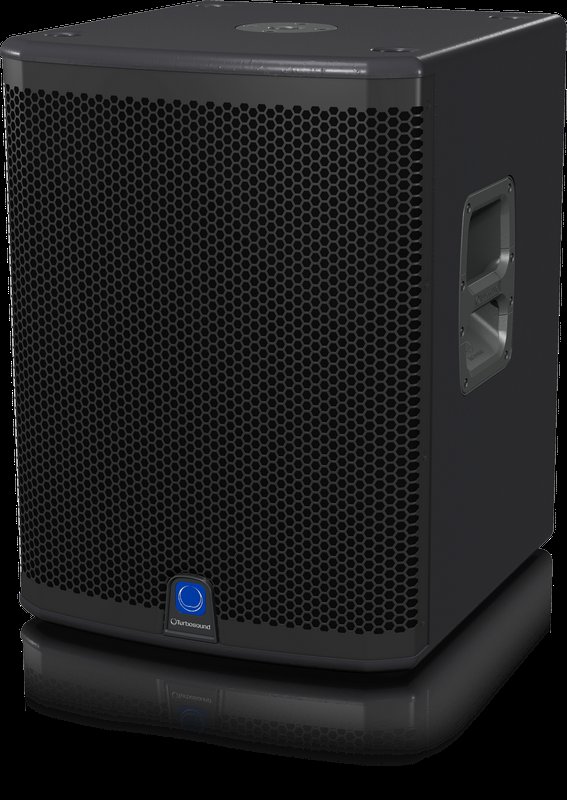

iQ-15b

!
    Frequency response: 50 Hz - 18 kHz ±3 dB, 42 Hz - 20 kHz -10 dB
    Nominal dispersion: 75° H x 55° V @ -6 dB points, rotatable
    Maximum SPL: 132 dB peak
    Crossover type: Active
    Transducers: 1 x 15" (387 mm) LF driver, 1 x 1" (25.4 mm) HF compression driver
    Limiter: Independent HF, LF, peak and rms
    Maximum output power: 3,000 W Type Class-D
    Protection: Short circuit, open circuit, thermal
    Input: A / B 2 x combo jack/XLR
    Sensitivity: Line +4 dBu, mic -22 dBu, switchable
    Input impedance: 20 kΩ unbalanced, 40 kΩ balanced
    Maximum input level: +21 dBu
    Output: A / B 2 x XLR Linked to input, Mix output XLR, balanced
    Output impedance: 100 Ω unbalanced, 200 Ω balanced
    Ultranet: input/link 2 x RJ45
    Mains Supply: Neutrik powerCON input 20A and link 15A
    DSP: Rotary push-encoder Buttons for Process, Setup, Exit, Enter Mixer section: 2 x gain controls (channels A and B)
    2 x Line/Mic switch
    Factory: EQ presets Positioning, Sound mode, Sound modeling, FBQ
    Display LCD: 128 x 32, blue backlit
    Delay: 0 - 300 ms
    Equalisation: High and low shelving EQ 2 x parametric EQ
    Limiter: Zero attack input limiter
    Presets: 20 total presets, 19 user-definable
    Crossover High Pass L-R 24 dB/oct
    Protection: Lock-out function for all settings
    Ultranet: Digital Network Signal: 16 channels
    Latency: < 0.9 ms
    Cables: Shielded CAT5 Cable length: max. 246 ft / 75 m recommended
    Power consumption: 200 W @ 1/8 max power
    Voltage (fuses): Europe 220-240 V~, 50/60 Hz (T 10 A H 250 V)
    Dimensions (H x W x D) 602 x 444 x 495mm (23.7 x 17.5 x 19.5")
    Construction: Injection-moulded polypropylene enclosure
    Finish: Black painted
    Grille: Powder coated perforated steel

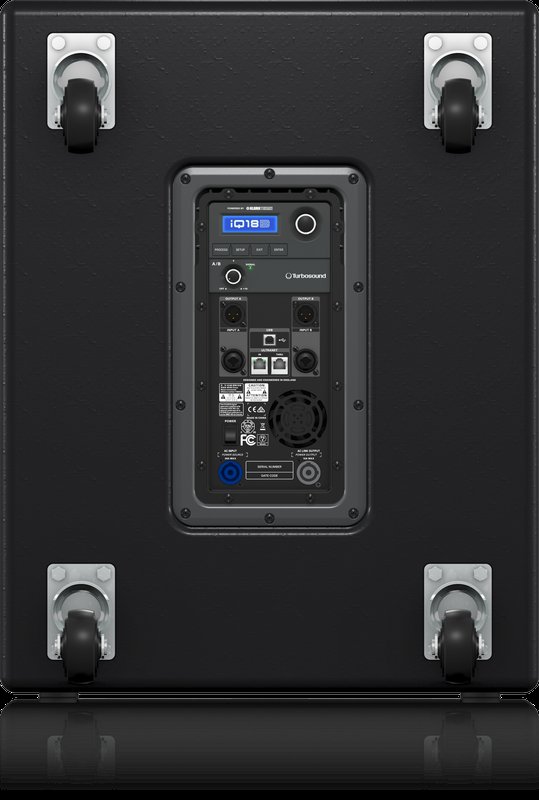

iQ-18b

!
    Frequency response: 50 Hz – 130 Hz ±3 dB, 40 Hz – 130 Hz -10 dB
    Nominal dispersion: Half Space
    Maximum SPL: 130 dB peak
    Crossover type: Active
    Transducers: 1 x 18" (460 mm) LF driver
    Dimensions: (H x W x D) 691 x 533 x 559 mm (27.2 x 21.0 x 22.0")
    Verdere gegevens als boven

Siena serie active

!

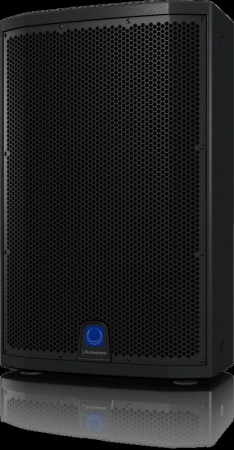

TSP122-AN

!
    Frequency response 50 Hz – 18 kHz ±3 dB, 43 Hz – 20 kHz -10 dB
    Nominal dispersion: 70° H x 50° V @ -6 dB Points
    Maximum SPL: 133 dB peak
    Crossover type: Active
    Transducers: 1 x 12" (316 mm) LF driver 1 x 1" (25.4 mm) HF compression driver
    Limiter: Independent HF, LF, peak and rms
    Amplifier Maximum output power: 2500 W Type Class-D
    Protection: Short circuit, thermal Controls
    DSP: Rotary push-encoder and level control Buttons for process, setup, exit, enter
    User  DSP Functions: Factory EQ presets Positioning, Sound mode FBQ
    Display: LCD 128 x 32, blue, backlit
    Delay: 0 - 300 ms
    Equalisation: High and low shelving EQ 2 x parametric EQ
    Limiter: Zero attack input limiter
    Presets: 20 total presets, 19 user-definable
    Crossover: High Pass L-R 24 dB/oct
    Protection Lock-out function for all settings
    Ultranet: Digital Network
    Digital processing: A/D conversion 24-bit, 44.1/48 kHz sample rate
    Converter type: 24-bit, delta-sigma "System
    Signal: 16 channels Latency < 0.9 ms
    Dynamic range: Typical 92 dB
    Cables: Shielded CAT5 Cable length Max. 246 ft / 75 m recommended
    Power consumption: 90 W @ 1⁄8 max power
    Voltage (fuses) Europe 220-240 V~, 50/60 Hz (T 10 A H 250 V)
    Dimensions: HWD 613 x 384 x 340 mm (24.1 x 15.1 x 13.4")
    Construction: 18 mm (¾") birch plywood
    Finish: Semi matt black paint
    Grille: Powder coated perforated steel
    Flying hardware M10 x 6 points

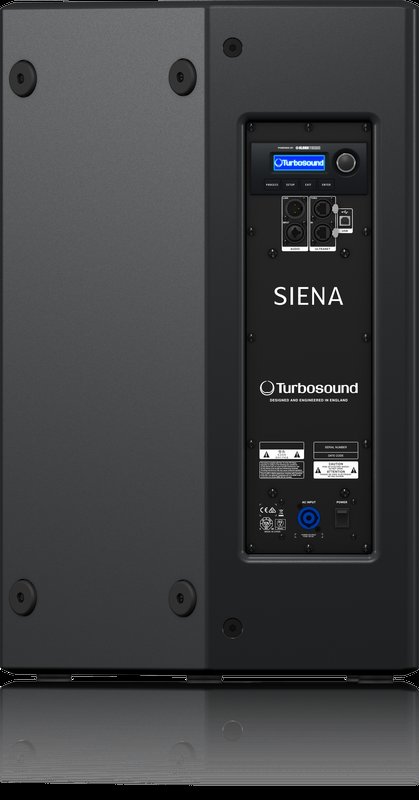

TSP152-AN

!
    Frequency response: 41 Hz – 18 kHz ±3 dB 35 Hz – 20 kHz -10 dB
    Nominal dispersion: 70° H x 50° V @ -6 dB Points
    Maximum SPL: 133 dB peak
    Crossover type: Active
    Transducers: 1 x 15" (394 mm) LF driver 1 x 1" (25.4 mm) HF compression driver
    Verdere gegevens als boven

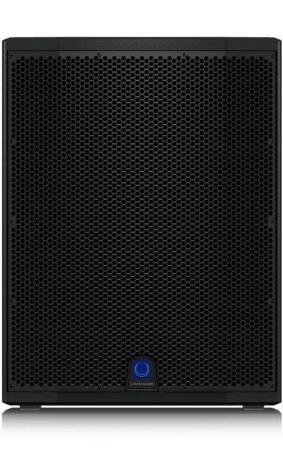

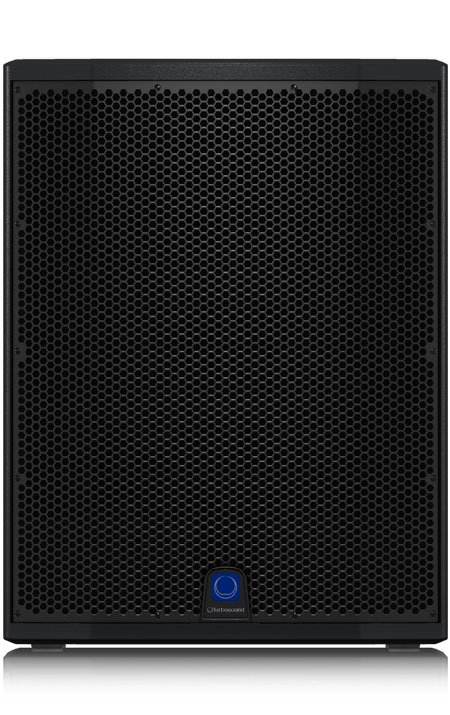

TSP118B-AN

!
    Frequency response: 35 Hz – 90 Hz ±3 dB 32 Hz – 100 Hz -10 dB
    Nominal dispersion: Half Space
    Maximum SPL: 134 dB peak
    Crossover type: Active
    Transducers 1 x 18" (460 mm) LF driver'
    Limiter: Independent LF, peak and rms"
    Amplifier Maximum output power: 3000 W Type Class-D
    Protection: Short circuit, thermal
    Input/link: 1 x Combo Jack/XLR, 1 x XLR
    Sensitivity; +4 dBu or +14 dBu software switchable
    Input impedance: 40 kΩ balanced
    Maximum input level: +22 dBu
    Ultranet: input/link 2 x RJ45
    Mains Supply: Neutrik powerCON 20A†
    Controls DSP: Rotary push-encoder and level control Buttons for process, setup, exit, enter User
    DSP Functions: Factory EQ presets Positioning, Sound mode FBQ
    Display: LCD 128 x 32, blue, backlit
    Delay: 0 - 300 ms
    Equalisation: High and low shelving EQ 2 x parametric
    EQ Limiter: Zero attack input limiter
    Presets: 20 total presets, 19 user-definable
    Crossover: High Pass L-R 24 dB/oct
    Protection: Lock-out function for all settings
    Ultranet; Digital Network Digital processing A/D conversion 24-bit, 44.1/48 kHz sample rate Converter type 24-bit, delta-sigma
    Signal: 16 channels Latency < 0.9 ms
    Dynamic range: typical 92 dB
    Cables: Shielded CAT5 Cable length Max. 246 ft / 75 m recommended
    Power consumption: 180 W @ 1⁄8 max power Voltage (fuses) Europe 220-240 V~, 50/60 Hz (T 10 A H 250 V)
    Dimensions: HWD 693x 523 x 725 mm (27.3 x 20.6 x 28.5")
    Construction: 18 mm (¾") birch plywood
    Finish: Semi matt black paint
    Grille: Powder coated perforated steel

Flashline monitor serie active

!

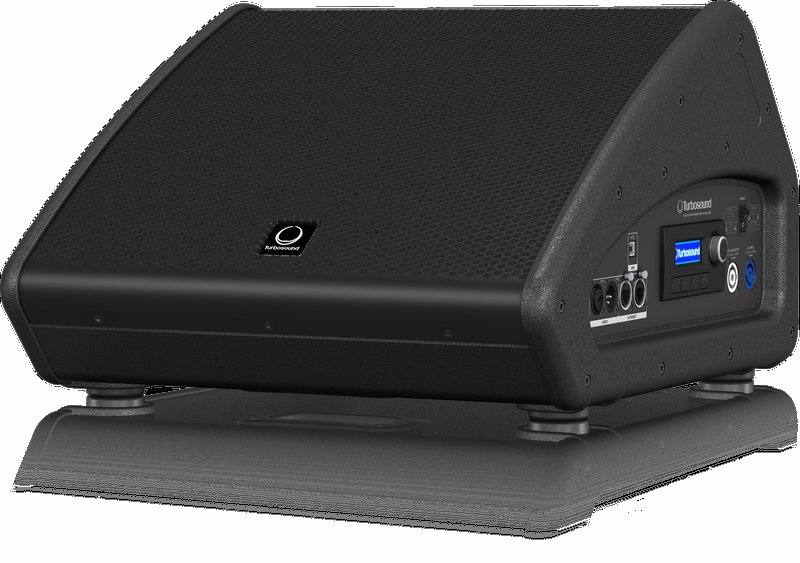

TFM-122M-AN

!
    Frequency response: 50 Hz – 20 kHz ±3 dB, 43 Hz – 20 kHz -10 dB
    Nominal dispersion: 120° H @ -6 dB points
    Maximum SPL: 122 dB
    Crossover type: 4 way, active and passive
    Transducers: 2 x 8" (208 mm) LF drivers 8 x 2.75" (70 mm) MF drivers 1 x 1" (25 mm) HF compression driver
    Limiter: Independent HF, LF Amplifier
    Maximum output power: 1000 W Type Class-D
    Protection: Short circuit, open circuit, thermal
    Amplifier channels: 3
    Connectors Input: A / B 2 x combo jack / XLR
    Sensitivity: 4 dBu, nominal
    Input impedance: 16 kΩ unbalanced, 33 kΩ balanced
    Maximum input level: +22 dBu
    Link output: XLR
    IEC mains: connector with integrated power switch
    Hardware Rotary: push-encoder "
    Software: iOS interface via Bluetooth
    DSP Functions: Factory EQ presets Positioning, Sound mode
    Display: LCD 128 x 32, blue, backlit
    Equalisation: Bass, middle and treble
    Protection: Lock-out function for all settings
    Bluetooth Wireless Technology: Frequency range 2402 MHz ~ 2480 MHz Channel number 79 Version
    Bluetooth: 4.0 dual mode
    Output: 8 dBM
    Compatibility Supports: A2DP 1.2 profi le Maximum communication range 30 m (without interference)
    Connectivity Master-slave: stereo pairing link
    Power consumption: 110 W @ 1⁄8 max power Voltage (fuses) Europe 220-240 V~, 50/60 Hz (T 3.15 A H 250 V)
    Dimensions: (H x W x D) 1955 x 262 x 370 mm (77.0 x 10.3 x 14.6")
    - Base: 655 x 262 x 370 mm (25.8 x 10.3 x 14.6")
    - Tower: 1300 x 103 x 89 mm (51.2 x 4.0 x 3.5")
    Construction: base 15 mm (5⁄8") birch plywood Construction, tower Aluminium alloy
    Finish: Semi matt black paint
    Grille: Powder coated perforated steel

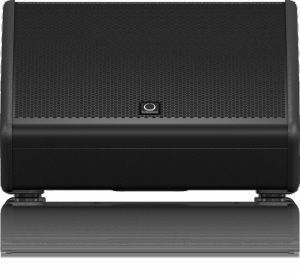

TFM-152M-AN

!
    Frequency response: 45 Hz – 20 kHz ±3 dB, 38 Hz – 20 kHz -10 dB
    Nominal dispersion: 120° H @ -6 dB points
    Maximum SPL: 123 dB
    Crossover type: 4 way, active and passive
    Transducers:
    - 1 x 12" (305 mm) LF driver,
    - 16 x 2.75" (70 mm) MF drivers,
    - 1 x 1" (25 mm) HF compression drive
    Dimensions (H x W x D): 2063 x 420 x 500mm (81.2 x 16.5 x 19.7")
    - Base 485 x 420 x 500 mm (19.1 x 16.5 x 19.7")
    - Tower 834 x 103 x 89 mm (32.8 x 4.0 x 3.5")
    Verdere gegevens als boven

TFX-122M-AN

!
    Frequency response: 70 Hz - 18 Hz ・}3 dB, 58 Hz - 20 Hz -10 dB
    Nominal dispersion: 70° H x 70° V @ -6 dB points
    Power handling (IEC): 150 W continuous, 600 W peak
    Sensitivity: 91 dB (1 W @ 1 m)
    Maximum SPL: 113 dB continuous, 119 dB peak
    Impedance: 4 Ω
    Components: 1 x 8" (203 mm) LF drive, 1 x 1" (25 mm) HF compression driver
    Connectors: 1 x Neutrik speakON* NL4
    Wiring: Pins 1+ / 1- input, pins 2+ / 2- N/C
    Dimensions HWD:455 x 280 x 235 mm (17.9 x 11.0 x 9.3")
    Construction: 15 mm (5⁄8") birch plywood
    Finish:Semi matt black paint
    Grille: Powder coated perforated steel

TFX-152M-AN

!
    Frequency response: 45 Hz – 150 Hz ±3 Db, 38 Hz – 200 Hz -10 dB
    Nominal dispersion: Half space
    Maximum SPL: 120 dB
    Crossover type: Active
    Transducers: 1 x 12" (305 mm) LF driver
    Limiter: Peak and RMS
    Maximum output power: Subwoofer 600 W, Satelites 2 x 200 W
    Sensitivity :4 dBu, nominal
    Input impedance: 16 kΩ unbalanced, 33 kΩ balanced
    Maximum input level: +22 dBu
    Hardware: Rotary push-encoder
    Software: iOS interface via Bluetooth User DSP Functions Factory EQ presets Positioning, Sound mode, phase
    Display: LCD 128 x 32, blue, backlit Equalisation Bass, middle and treble
    Crossover: High pass L-R 24 dB/oct
    Protection: Lock-out function for all settings
    Bluetooth: Wireless Technology Frequency range 2402 MHz ~ 2480 MHz Channel number 79 Version
    Bluetooth: 4.0 dual mode Output 8 dBM
    Compatibility: Supports A2DP 1.2 profile
    Maximum communication: range 30 m (without interference)
    Connectivity: Master-slave: stereo pairing link
    Power consumption: 110 W @ 1⁄8 max power Voltage (fuses)Europe 220-240 V~, 50/60 Hz (T 3.15 A H 250 V)
    Dimensions: (H x W x D) 485 x 420 x 500 mm (19.1 x 16.5 x 19.7")
    Construction: 15 mm (5⁄8") birch plywood sub
    Finish: Semi matt black paint
    Grille: Powder coated perforated steel
