Oberton
Kies voor UK Import - extra 25euro verzendkosten per 25Kg!!!
!

18"

!

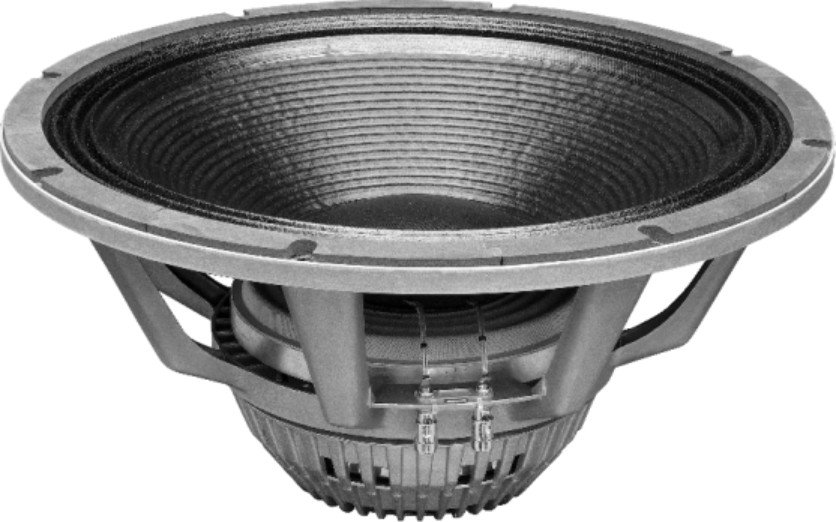

18NXB1601

!
    for bass horn applications
    Nominal Diameter: 18"/461 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 1600 W
    Program Power: 3200 W
    Sensitivity: Depends on horn(97dB→)
    Frequency Range: 30 - 250 Hz
    Voice Coil Diameter: 115 mm (4.5”)
    Net Weight: 11.7 kg

18NXB1600

!
    for subwoofer applications
    Nominal Diameter: 18"/461 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 1600 W
    Program Power: 3200 W
    Sensitivity: 97 dB
    Frequency Range: 30 - 1000 Hz
    Voice Coil Diameter: 115 mm (4.5”)
    Net Weight: 11.7 kg

18NXB1200

!
    for subwoofer applications
    Nominal Diameter: 18"/461 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 1200 W
    Program Power: 2400 W
    Sensitivity: 97,5 dB
    Frequency Range: 35 - 1000 Hz
    Voice Coil Diameter: 100 mm (4.0”)
    Net Weight: 8.95 kg

18XB1600

!
    for bass applications
    Nominal Diameter: 18"/461 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 1600 W
    Program Power: 3200 W
    Sensitivity: 97 dB
    Frequency Range: 30 - 1000 Hz
    Voice Coil Diameter: 115 mm (4.5”)
    Net Weight: 16.8 kg

18XB1500

!
    for bass horn applications
    Nominal Diameter: 18"/461 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 1500 W
    Program Power: 3000 W
    Sensitivity: Depends on horn(97dB→)
    Frequency Range: 30 - 1000 Hz
    Voice Coil Diameter: 115 mm (4.5”)
    Net Weight: 16.8 kg

18XB1300

!
    for  subwoofer applications
    Nominal Diameter: 18"/461 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 1300 W
    Program Power: 2600 W
    Sensitivity: 97,5 dB
    Frequency Range: 35 - 1000 Hz
    Voice Coil Diameter: 100 mm (4.0”)
    Net Weight: 12.9 kg

18XB800

!
    for subwoofer applications
    Nominal Diameter: 18"/461 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 1100 W
    Program Power: 2200 W
    Sensitivity: 97,5 dB
    Frequency Range: 35 - 500 Hz
    Voice Coil Diameter: 100 mm (4.0”)
    Net Weight: 12.9 kg

18XB700

!
    for subwoofer applications
    Nominal Diameter: 18"/461 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 1000 W
    Program Power: 2000 W
    Sensitivity: 98 dB
    Frequency Range: 35 - 1000 Hz
    Voice Coil Diameter: 100 mm (4.0”)
    Net Weight: 12.55 kg

18B500

!
    for subwoofer applications
    Nominal Diameter: 18"/461 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 600 W
    Program Power: 1200 W
    Sensitivity: 99 dB
    Frequency Range: 35 - 1000 Hz
    Voice Coil Diameter: 77 mm (3.0”)
    Net Weight: 12.30 kg

15"

!

15NXB700

!
    for tuned reflex or horn loaded applications
    Nominal Diameter: 15"/388 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 1000 W
    Program Power: 2000 W
    Sensitivity: 97 dB
    Frequency Range: 38 - 1000 Hz
    Voice Coil Diameter: 100 mm (4.0”)
    Net Weight: 8.1 kg

15XB700

!
     for tuned reflex or horn loaded applications
    Nominal Diameter: 15"/388 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 1000 W
    Program Power: 2000 W
    Sensitivity: 95 dB
    Frequency Range: 37 - 2000 Hz
    Voice Coil Diameter: 100 mm (4.0”)
    Net Weight: 11.95 kg

15NXL700

!
    for 2- or 3- way applications
    Nominal Diameter: 15"/388 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 700 W
    Program Power: 1400 W
    Sensitivity: 99 dB
    Frequency Range: 45 - 3000 Hz
    Voice Coil Diameter: 100 mm (4.0”)
    Net Weight: 7.9 kg

15XL700

!
    for 2- or 3- way applications
    Nominal Diameter: 15"/388 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 700 W
    Program Power: 1400 W
    Sensitivity: 98 dB
    Frequency Range: 45 – 3000 Hz
    Voice Coil Diameter: 100 mm (4.0”)
    Net Weight: 11.95kg

15NMB35

!
    for tuned reflex or horn loaded applications
    Nominal Diameter: 15"/388 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 600 W
    Program Power: 1200 W
    Sensitivity: 99,5 dB
    Frequency Range: 45 - 3000 Hz
    Voice Coil Diameter: 88 mm (3.5”)
    Net Weight: 5.32 kg

15MB35

!
    for 2- or 3- way applications
    Nominal Diameter: 15"/388 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 700 W
    Program Power: 1400 W
    Sensitivity: 100 dB
    Frequency Range: 45 - 3000 Hz
    Voice Coil Diameter: 88 mm (3.5”)
    Net Weight:  9.2 kg

15MB600

!
    for compact size bass reflex enclosures and horn loaded or hybrid horn loaded systems
    Nominal Diameter: 15"/388 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 600 W
    Program Power: 1200 W
    Sensitivity: 98 dB
    Frequency Range: 37 - 2000 Hz
    Voice Coil Diameter: 100 mm (4.0”)
    Net Weight: 10.45 kg

15B500

!
    2- or 3- way systems
    Nominal Diameter: 15"/388 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 500 W
    Program Power: 1000 W
    Sensitivity: 99 dB
    Frequency Range: 38 - 2500 Hz
    Voice Coil Diameter: 77 mm (3.0”)
    Net Weight: 7.8 kg

15MB500

!
    for 2- or 3- way applications
    Nominal Diameter: 15"/388 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 500 W
    Program Power: 1000 W
    Sensitivity: 100 dB
    Frequency Range: 50 - 3000 Hz
    Voice Coil Diameter: 77 mm (3.0”)
    Net Weight: 7.8 kg

15PD600

!
    for compact size bass reflex and horn loaded or hybrid horn loaded systems
    Nominal Diameter: 15"/388 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 600 W
    Program Power: 1200 W
    Sensitivity: 98 dB
    Frequency Range: 38 - 2500 Hz
    Voice Coil Diameter: 100 mm (4.0”)
    Net Weight: 11.8 kg

15B450

!
    for 2- or 3- way applications
    Nominal Diameter: 15"/388 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 450 W
    Program Power: 900 W
    Sensitivity: 100 dB
    Frequency Range: 45 - 2500 Hz
    Voice Coil Diameter: 77 mm (3.0”)
    Net Weight: 7.5 kg

12"

!

12B450

!
    for small stage monitors and 2- way systems
    Nominal Diameter: 12"/315 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 450 W
    Program Power: 900 W
    Sensitivity: 99 dB
    Frequency Range: 50 – 3000 Hz
    Voice Coil Diameter: 77 mm (3.0”)
    Net Weight: 7.5 kg

12NXL400

!
    for midbass boxes
    Nominal Diameter: 12"/315 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 450 W
    Program Power: 900 W
    Sensitivity: 101 dB
    Frequency Range: 50 – 3500 Hz
    Voice Coil Diameter: 77 mm (3.0”)
    Net Weight: 5.05 kg

12B400

!
    for compact 2- way boxes and small stage monitors
    Nominal Diameter: 12"/315 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 450 W
    Program Power: 900 W
    Sensitivity: 98 dB
    Frequency Range: 50 – 2500 Hz
    Voice Coil Diameter: 77 mm (3.0”)
    Net Weight: 7.25 kg

12MB35

!
    for stage monitors and  2- way PA boxes
    Nominal Diameter: 12"/315 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 700 W
    Program Power: 1400 W
    Sensitivity: 98 dB
    Frequency Range: 50 – 2500 Hz
    Voice Coil Diameter: 88 mm (3.5”)
    Net Weight: 8.5 kg

12B400

!
    for  small stage monitor and 2- way PA boxes
    Nominal Diameter: 12"/315 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 450 W
    Program Power: 900 W
    Sensitivity: 98 dB
    Frequency Range: 50 – 2500 Hz
    Voice Coil Diameter: 77 mm (3.0”)
    Net Weight: 7.25 kg

12B401

!
    for small stage monitors and  2- way systems
    Nominal Diameter: 12"/315 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 400 W
    Program Power: 800 W
    Sensitivity: 97 dB
    Frequency Range: 50 – 2500 Hz
    Voice Coil Diameter: 77 mm (3.0”)
    Net Weight: 7.25 kg

12NMB35

!
    for stage monitors and 2- way systems
    Nominal Diameter: 12"/315 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 600 W
    Program Power: 1200 W
    Sensitivity: 99 dB
    Frequency Range: 50 – 3000 Hz
    Voice Coil Diameter: 88 mm (3.5”)
    Net Weight: 5.05 kg.

10"

!

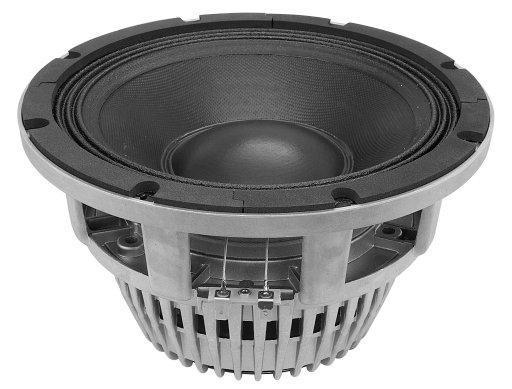

10NMB300

!
    for medium and long throw horn loaded systems
    Nominal Diameter: 10"/262 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 400 W
    Program Power: 800 W
    Sensitivity: 99.5 dB
    Frequency Range: 80 – 2500 Hz
    Voice Coil Diameter: 77 mm (3.0”)
    Net Weight: 4.75 kg

10MB300

!
    for medium and long throw horn loaded systems
    Nominal Diameter: 10"/262 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 400 W
    Program Power: 800 W
    Sensitivity: 99 dB
    Frequency Range: 80 – 2500 Hz
    Voice Coil Diameter: 77 mm (3.0”)
    Net Weight: 6.8 kg

10M250

!
    for midrange in 3 way boxes, horn loading application.
    Nominal Diameter: 10"/262 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 250 W
    Program Power: 500 W
    Sensitivity: 97 dB
    Frequency Range: 70 - 5000 Hz
    Voice Coil Diameter: 64 mm (2.5”)
    Net Weight: 6.6 kg

10B200

!
    for compact 2-way boxes
    Nominal Diameter: 10"/262 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 200 W
    Program Power: 400 W
    Sensitivity: 93 dB
    Frequency Range: 45 - 3000 Hz
    Voice Coil Diameter: 51 mm (2.0”)
    Net Weight: 3.6 kg

8"

!

8NM250 V2 16Ohm

!
    for midrange in direct radiating and horn loaded boxes
    Nominal Diameter: 8"/210 inch/mm
    Rated Impedance: 16 Ω
    AES Power: 250 W
    Program Power: 500 W
    Sensitivity: 100 dB
    Frequency Range: 100 – 5000 Hz
    Voice Coil Diameter: 64 mm (2.5”)
    Net Weight: 2.70 kg

8NM200

!
    for midrange in direct radiating and horn loaded boxes
    Nominal Diameter: 8"/210 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 200 W
    Program Power: 400 W
    Sensitivity: 101 dB
    Frequency Range: 100 – 4000 Hz
    Voice Coil Diameter: 51 mm (2.0”)
    Net Weight: 2.00 kg

8NB201

!
    for compact bass reflex boxes
    Nominal Diameter: 8"/210 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 200 W
    Program Power: 400 W
    Sensitivity: 95 dB
    Frequency Range: 65 – 3000 Hz
    Voice Coil Diameter: 51 mm (2.0”)
    Net Weight: 2.38 kg

8M250

!
    for direct radiating or horn loaded midrange speaker
    Nominal Diameter: 8"/210 inch/mm
    Rated Impedance: 8 Ω
    AES Power: 250 W
    Program Power: 500 W
    Sensitivity: 99.5 dB
    Frequency Range: 90 - 5000 Hz
    Voice Coil Diameter: 51 mm (2.0”)
    Net Weight: 4.3 kg
