Midas
!

M32

!
    Digital Console for Live and Studio with 40 Input Channels, 32 MIDAS Microphone Preamplifiers and 25 Mix Buses.
    Live performance and studio recording digital console with up to 40 simultaneous input channels
    32 award-winning MIDAS microphone preamplifiers
    25 time-aligned and phase-coherent mix buses
    AES50 networking allows up to 96 inputs and 96 outputs
    Open architecture allows for future 96 kHz operation
    192 kHz ADC and DAC converters for outstanding audio performance
    Industry-leading design by Bentley* Motors Designer
    High-performance carbon fibre, aluminium and high-impact steel structure
    40 bit floating point digital signal processing
    8 DCA and 6 mute groups
    8 stereo signal processing effects engines
    25 MIDAS PRO motorised 100 mm faders
    Daylight viewable 7" full colour TFT display screen
    32 x 32 channel USB 2.0 audio interface
    DAW remote control emulations of Mackie Control* and HUI* protocols
    Optional wireless remote control with MIDAS Apps for iPhone* and iPad*
    Auto-ranging universal switch-mode power supply

M32 Rack

!
    M32 Rack console 19inch
    Live performance and studio recording digital console with up to 40 simultaneous input channels
    16 award-winning MIDAS PRO microphone preamplifiers
    25 time-aligned and phase-coherent mix buses
    AES50 networking allows up to 96 inputs and 96 outputs
    Open architecture allows for future 96 kHz operation
    192 kHz ADC and DAC converters for outstanding audio performance
    Industry-leading design by Bentley* Motors Designer
    High-performance aluminium and high-impact steel structure
    Rack mount brackets included for ultimate flexibility
    40 bit floating point digital signal processing
    8 DCA and 6 mute groups
    8 digital signal processing effects engines
    17 MIDAS PRO motorised 100 mm faders
    Daylight enable 5" full colour TFT display screen
    32 x 32 channel USB 2.0 audio interface
    DAW remote control emulations of Mackie Control* and HUI* protocols
    Optional wireless remote control with MIDAS Apps for iPhone* and iPad*

M32C

!
    40-input channel, 25-bus, 1U rackmountable digital mixing core for live and installed sound application
    25 time-aligned and phase-coherent mix buses
    AES50 networking allows up to 96 inputs and 96 outputs
    Open architecture allows for future 96 kHz operation
    High-performance aluminium and high-impact steel structure
    40 bit floating point digital signal processing
    8 DCA and 6 mute groups
    Combine the M32C with our DL16 or DL32 Stage Boxes
    Wireless Remote Control M32-EDIT (PC, Mac, Linux) on computer, iPad or iPhone (not included)

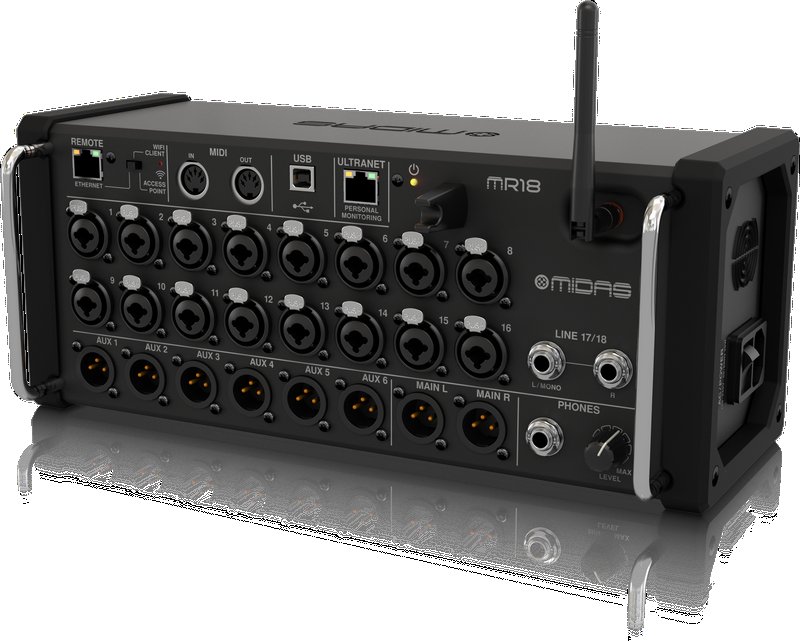

MR-18

!
  • iPad*/Android* tablet controlled 18-input digital mixer for studio and live application
  • 16 award-winning MIDAS PRO microphone preamplifiers
  • Built-In Tri-Mode Wifi router for direct operation—no need for external routers
  • 18 x 18 channel, bidirectional USB2.0 interface
  • Dugan*-style Auto-Mixing automatically manages microphone gain sharing
  • 4 digital signal processing effects engines
  • ULTRANET connectivity for P-16 Personal Monitoring System*
  • Rack ears and protection bumpers included for flexible rack and onstage applications
  • 6 aux and main LR buses with inserts, full dynamics processing and 6-band parametric or 31-band graphic EQ
  • iPad*/Android* tablet controlled 18-input digital mixer for studio and live application
  • 6 XLR aux outputs and 2 XLR main outputs plus phones connector
  • 40 bit floating point digital signal processing
  • Free iOS, Android and PC/Mac*/Linux* apps available for remote operation via Ethernet, LAN or WiFi
  • MIDI In/Out allows controlling the mixer via MIDI equipment or for use as a USB MIDI interface
  • Future firmware updates, incl. new FX “Plug Ins”, downloadable from midasconsoles.com free of charge
  • Auto-ranging universal switch-mode power supply
  • 3-Year Warranty Program*
  • Designed and engineered in the U.K.
  • Dimensions: 333 x 149 x 140 mm
  • Weight: 3,9 Kg

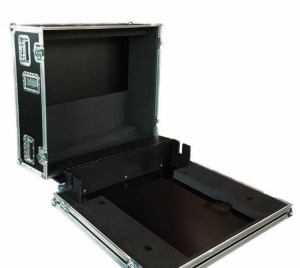

Flightcase M32R

!

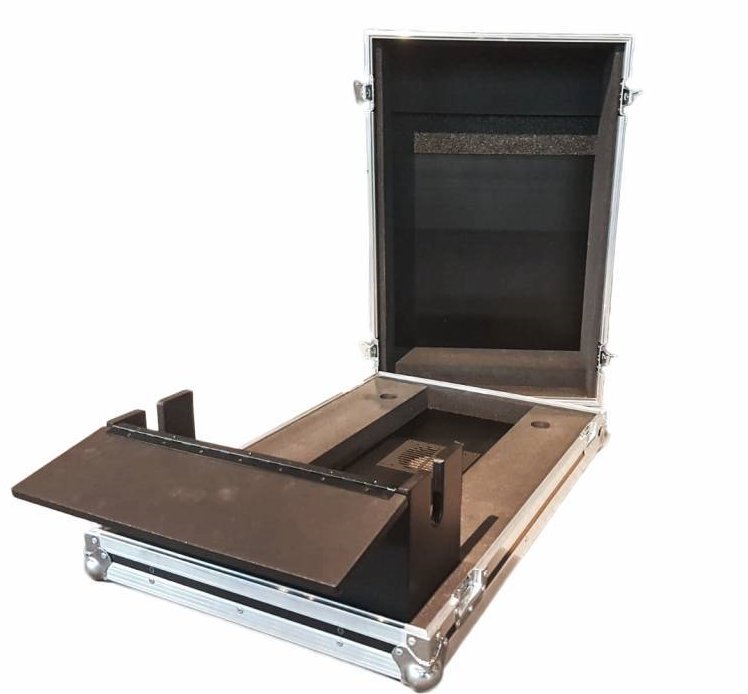

    Flightcase M32R Doghouse, no wheels

PRO1-TP + flightcase

!
    Live Audio System with 24 Mic / Line inputs with remote mic pres and 27 Sample-Synchronous,
    Phase-Coherent Mix Busses and built-in DSP
    3 x 96 kHz AES50 ports, providing an additional 72 inputs and 72 outputs
    24 integral mic/line inputs with MIDAS mic preamps
    48 simultaneous input processing channels
    24 analogue outputs (including 2 stereo local monitor outputs)
    3 AES3 outputs
    2 AES3 inputs
    27 sample-synchronous, phase-coherent mix busses
    Up to 12 multichannel FX engines
    Up to 28 KLARK TEKNIK DN370 31-band Graphic EQs
    Full-colour 15" daylight-viewable display screen with DVI out
    8 VCA (Variable Control Association) groups
    6 POPulation groups
    96 kHz 40-bit floating-point processing throughout
    Field-replaceable power supply
    Incl. Midas pro flightcase

PRO2-CC-TP + flightcase

!
    6 x 96 kHz AES50 ports, providing an additional 156 inputs and 166 outputs
    8 integral mic/line inputs with MIDAS mic preamps
    64 simultaneous input processing channels
    32 analogue outputs (including 16 on the stage box and 2 stereo local monitor outputs)
    3 AES3 outputs
    2 AES3 inputs
    27 sample-synchronous, phase-coherent mix buses
    Up to 12 multichannel FX engines
    Up to 28 KLARK TEKNIK DN370 31-band Graphic EQs
    Full-colour 15" daylight-viewable display screen
    8 VCA (Variable Control Association) groups
    6 POPulation groups
    96 kHz 40-bit floating-point processing throughout
    Incl. Midas pro flightcase

PRO2C-CC-TP + flightcase

!
    6 x 96 kHz AES50 ports, providing an additional 156 inputs and 166 outputs
    8 integral mic/line inputs with MIDAS mic preamps
    64 simultaneous input processing channels
    32 analogue outputs (including 16 on the stage box and 2 stereo local monitor outputs)
    3 AES3 outputs
    2 AES3 inputs
    27 sample-synchronous, phase-coherent mix buses
    Up to 12 multichannel FX engines
    Up to 28 KLARK TEKNIK DN370 31-band Graphic EQs
    Full-colour 15" daylight-viewable display screen
    8 VCA (Variable Control Association) groups
    6 POPulation groups
    96 kHz 40-bit floating-point processing throughout
    Incl. Midas pro flightcase

Pro X-CC-TP + flightcase

!
    Live performance digital console control centre with up to 168 simultaneous inputs
    Includes NEUTRON Audio System Engine with industry leading 108 Gigaflops digital signal processing performance
    To be added, not included: NEUTRON for 4 DSP cards for N+1 redundant operation
    99 time-aligned and phase-coherent mix buses
    40 bit floating point processing with 96 kHz sample rate
    HyperMAC and AES50 networking allows up to 288 inputs and 294 outputs @ 96 kHz Sample Rate
    HyperMAC router with 192 bidirectional channels over copper and optical fibre
    Provides dual redundant snake connection to the NEUTRON Audio System Engine
    Snake connections up to 500 m with optical fibre or 100 m with CAT5/5e cable
    10 VCA (variable control association) and 8 POPulation groups
    36 assignable 1/3 octave KLARK TEKNIK DN370 graphic equalisers
    Up to 40 simultaneous multi-channel digital signal processing effects algorithms
    29 MIDAS PRO motorised 100 mm faders
    2 daylight viewable 15" full colour TFT display screens
    Fully interpolated touch sensitive controls
    Optional wireless remote control with MIDAS MIXTENDER App for iPad*
    Three bay auto-ranging universal switch-mode power supplies with N+1 redundancy

Digital stagebox

!

DL16 for M-32

!
    16 microphone preamplifi ers with switchable +48 V phantom power
    8 electronically balanced low impedance line level outputs
    ULTRANET personal monitoring system connectivity for in-ear applications
    Dual ADAT* outputs for use in splitter mode and stand-alone digital multicore applications
    Dual AES50 ports for cascading DL16 units — no merger or router required
    Remote operation up to 100 m via CAT5/5e cable
    All settings programmable from front panel controls or console
    Status indicator LEDs on front panel
    Headphones output assignable to any of the inputs or outputs for on-stage monitoring
    MIDI In/Out for bidirectional communication between FOH console and on-stage MIDI devices
    Features Neutrik etherCON* AES50 and ULTRANET network ports
    Rugged 2U rackmount chassis for durability in portable applications
    Auto-ranging universal switch-mode power supply

DL32 for M-32

!
    Als boven maar nu met 32 inputs en 16 outputs

Pro series DL151

!
    24 award-winning MIDAS microphone preamplifiers inputs with switchable +48 V phantom power
    Remote operation up to 100 m via CAT5/5e cable
    24 bit audio operation with 96 kHz sample rate
    Open architecture allows for future 48 kHz operation
    All settings programmable from front panel controls or console
    PSU status indicator LEDs and configuration LCD display on front pane
    Supports dual redundant AES50 networks
    Features Neutrik etherCON* AES50 network ports
    Rugged 2U rackmount chassis for durability in portable applications
    Auto-ranging universal switch-mode power supply

Pro series DL152

!
    24 electronically balanced low impedance line level outputs
    Remote operation up to 100 m via CAT5/5e cable
    24 bit audio operation with 96 kHz sample rate
    Open architecture allows for future 48 kHz operation
    All settings programmable from front panel controls or console
    PSU status indicator LEDs and configuration LCD display on front panel
    Supports dual redundant AES50 networks
    Features Neutrik etherCON* AES50 network ports
    Rugged 2U rackmount chassis for durability in portable applications
    Auto-ranging universal switch-mode power supply

Pro series DL153

!
    16 award-winning MIDAS microphone preamplifiers with switchable +48 V phantom power
    8 electronically balanced low impedance line level outputs
    Remote operation up to 100 m via CAT5/5e cable
    24 bit audio operation with 96 kHz sample rate
    Open architecture allows for future 48 kHz operation
    All settings programmable from front panel controls or console
    PSU status indicator LEDs and configuration LCD display on front panel
    Supports dual redundant AES50 networks
    Features Neutrik etherCON* AES50 network ports
    Rugged 2U rackmount chassis for durability in portable applications
    Auto-ranging universal switch-mode power supply

Pro series DL231

!
    24 award-winning MIDAS microphone preamplifiers per input with switchable +48 V phantom power
    2 dual redundant AES50 network ports with independent phase-locked loop synchronisation
    24 electronically balanced output channels can be sourced from microphone preamplifiers or AES50 ports
    Remote operation up to 100 m via CAT5/5e cable 24 bit audio operation with 96 kHz sample rate
    All settings programmable from front panel controls or console
    PSU status indicator LEDs and configuration LCD display on front panel
    Features Neutrik etherCON* AES50 network ports
    Rugged 5U rackmount chassis for durability in portable applications
    Dual redundant auto-ranging universal switch-mode power supplies

Pro series DL251

!
    48 remote control mic/line audio inputs, fixed configuration
    16 audio line outputs, fixed configuration
    Switchable between 96 kHz and 48 kHz sample rates
    MIDI in, out and thru
    3 AES50 ports
    Ethernet control port (using MIDAS protocols)
    Dual-redundant PSUs
    Digital snake and distribution network component
    48 audio outputs x 16 audio inputs configuration for snake applications
    5U 19" rack-mountable form factor

Digitale multikabel

!

cat5E 50mtr op reel shielded

!
    Ruggedised CAT5e UTP Network Cable Neutrik connectors, op reel 50mtr

Fibre 150mtr op reel

!
    Ruggedised MultiMode Optical Fibre Cable

Dig access

!

DN9331 Graphic Controller

!
    Rapid response 100 mm motorised faders provide instant recall of channel EQ settings
    Compatible with MIDAS 96 kHz digital mixing consoles consoles
    4 banks with 32 channel selections “ allows control of up to 128 EQ channels
    4 EQ group assignments with global "Select All" group
    MIDAS Solo Tracking System for automatic recall of channel EQ curves
    Simultaneous control of MIDAS graphic EQs and KLARK TEKNIK HELIX equalisers
    Integrated 8-port Ethernet hub with Neutrik etherCON* connectors
    Rugged 6U rackmount chassis for durability in portable applications
    Auto-ranging universal switch-mode power supply
